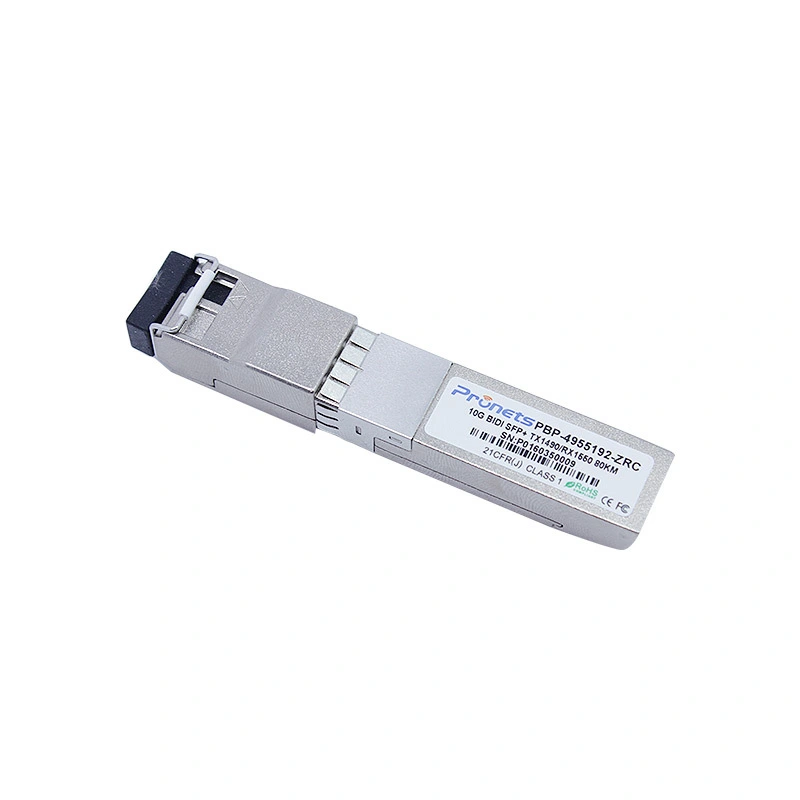

PBP-4955192-ZRC 10GBase-BX 80Km T1490\R1550nm SFP+ Bidirectional Optical Transceiver

Features

SFP MSA package with single LC connector

Typical bidi 1490/1550nm and 1550nm/1490nm for commission

APD receiver for high sensitivity

Very low EMI and excellent ESD protection

Digital Diagnostic Monitor Interface

Hot pluggable

Support 9.95Gb/s to 11.1Gb/s serial optical interface

Up to 80km distance

Compliant with SFP+ MSA

High transmission margin

+3.3V single power supply

Below <1.5W power consumption

Applications

10GBASE-BX at 10.3125 Gb/s

Other optical link

Standard

SFF-8472 reversion 9.5 compliant

IEEE802.3-2005 compliant

Telcordia GR-468-CORE compliant

FCC 47 CFR Part 15,Class B compliant

FDA 21 CFR 1040.10 and 1040.11,class1 compliant

RoHS compliant

Descriptions

PRONETS PBP-4955192-ZRC is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 11.1Gbps,it designed to be compliant with SFF-8472 and SFP+ MSA.
The module data link up to 80km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
