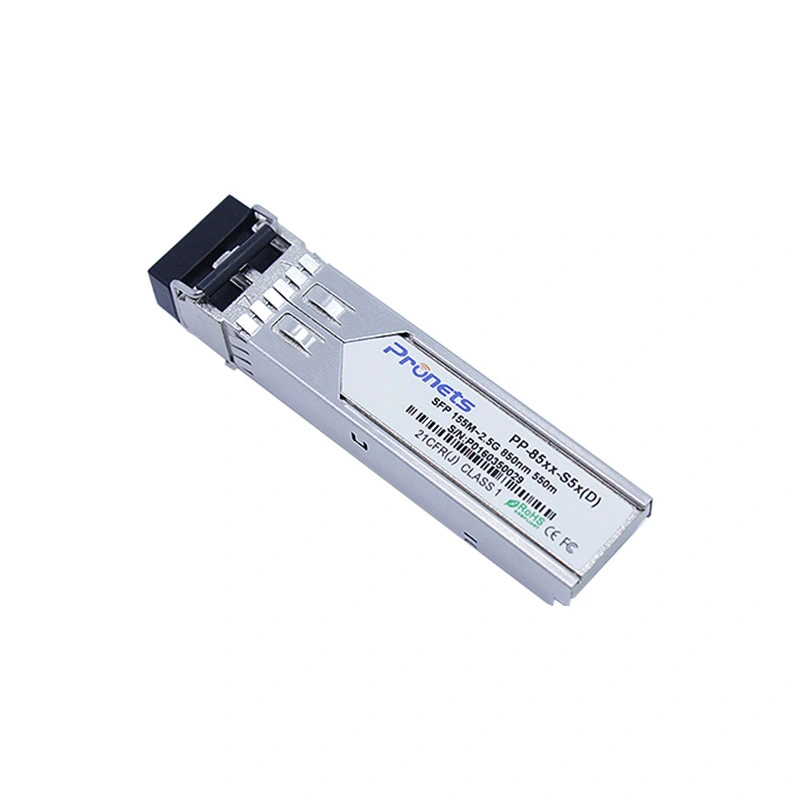

PP-8503-02x(D) 100Base up to 155M 850nm 2Km SFP Optical Transceiver
5.0
like
Specification Download:
/uploads/hongyuan.weyes.com.cn/addon/PP-8503-02C.pdf
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Features
Up to 155Mbps data-rate
850nm VCSEL laser and PIN photodetector
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring:Internal Calibration or External Calibration
Compatible with RoHS
+3.3V single power supply
Operating case temperature: Standard : 0 to +70°C
Applications
SDH STM-1, S-1.1,L-1.1, L-1.2
SONET OC-3 IR1,LR1,LR2
Other optical links
Description
The SFP transceivers are high performance, cost effective modules supporting data-rate of 155Mbps and 2km transmission distance with MMF.
The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit.
All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Up to 155Mbps data-rate
850nm VCSEL laser and PIN photodetector
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring:Internal Calibration or External Calibration
Compatible with RoHS
+3.3V single power supply
Operating case temperature: Standard : 0 to +70°C
Applications
SDH STM-1, S-1.1,L-1.1, L-1.2
SONET OC-3 IR1,LR1,LR2
Other optical links
Description
The SFP transceivers are high performance, cost effective modules supporting data-rate of 155Mbps and 2km transmission distance with MMF.
The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit.
All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
