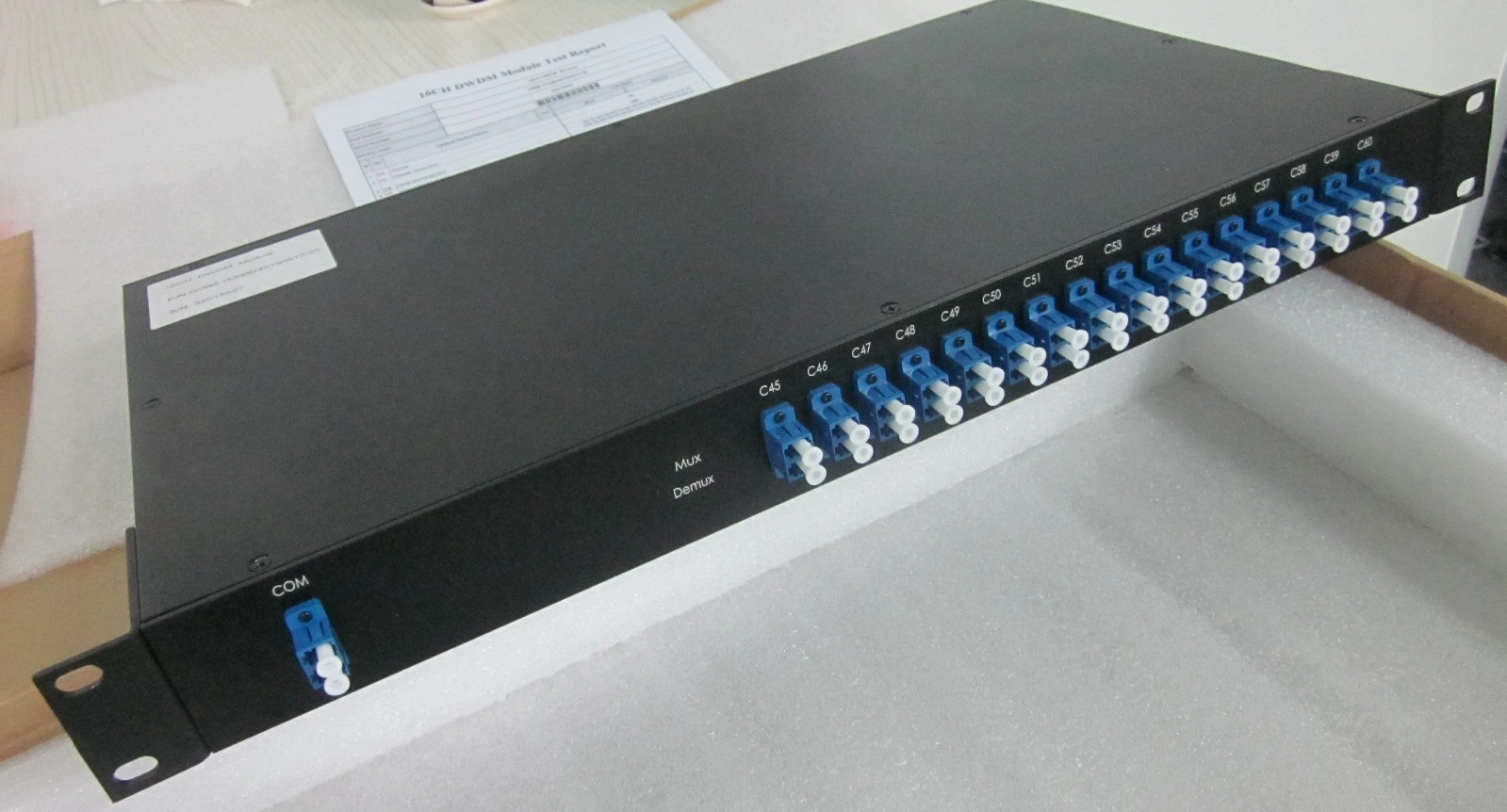

1% Monitor+16CH DWDM 100GHz MUX+DEMUX in 1U rack
Low Insertion
Loss High Isolation
Low PDL
Compact Design
Wide Operating Wavelength: From 1460nm to 1620nm
Wide Operating Temperature: From -40℃ to 85℃
High Reliability and Stability
Applications
DWDM System
PON Networks
CATV Links
Compliance
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
ITU-T G.694.1
RoHS
|
Parameters |
|
|
|
Channel Space(GHz) |
100 |
|
|
Center Wavelength(nm) |
45CH/46CH/47CH/48CH/49CH/50CH/51CH/52CH 53CH/54CH/55CH/56CH/57CH/58CH/59CH/60CH |
|
|
Channel Passband (@-0.5 dB) |
0.22 |
|
|
Fiber Type |
SMF-28e with 0.9mm Loose tube |
|
|
Length(m) |
1.0±0.05 |
|
|
Insertion Loss@ DWDM Ports (dB) |
≤4.5 |
|
|
Insertion Loss@ %1 Monitor Port (dB) |
≤25 |
|
|
DWDM Channel Isolation (dB) |
Adjacent Channel |
≥25 |
|
Non-Adjacent Channel |
≥40 |
|
|
Polarization Dependent Loss (dB) |
≤0.2 |
|
|
Ripple(dB) |
≤0.5 |
|
|
Polarization Mode Dispersion (ps) |
≤0.1 |
|
|
Return Loss(dB) |
≥45 |
|
|
Directivity (dB) |
≥50 |
|
|
Maximum Optical Power (mw) |
300 |
|
|
Operating Temperature (℃) |
0～75 |
|
|
Storage Temperature (℃) |
-40～85 |
|
|
Package Dimension (mm) |
19″Rack mount |
|
|
Connector Type |
LC/UPC |
|
