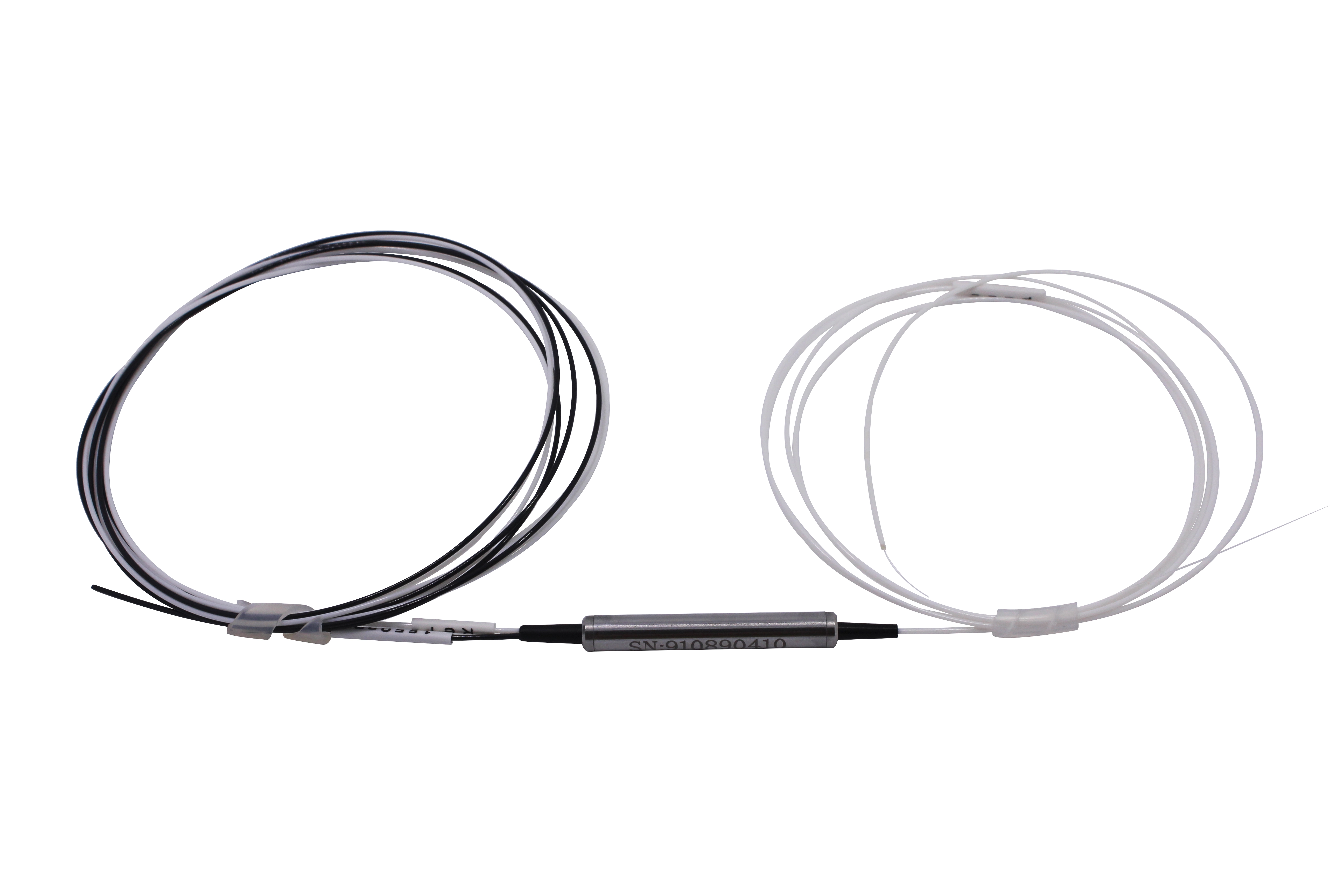

Filter Wavelength Division Multiplexing (FWDM)
Low Insertion
Loss High Isolation
Low PDL
Compact Design
Wide Operating Wavelength: From 1460nm to 1620nm
Wide Operating Temperature: From -40℃ to 85℃
High Reliability and Stability
Applications
DWDM System
PON Networks
CATV Links
Compliance
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
ITU-T G.694.1
RoHS
|
Parameters |
|
||||||
|
Operating wavelength (nm) |
T13/R15 |
T15/R13 |
T13/R1415 |
T14R1315 |
T15R1314 |
T1415R13 |
T1314R15 |
|
Transmission Wavelength Range (nm) |
1310+/-40 |
1550+/-40 |
1310+/-40 |
1490+/-10 |
1550+/-10 |
1490+/-10& 1550+/-10 |
1310+/-40& 1490+/-10 |
|
Reflection Wavelength Range (nm) |
1550+/-40 |
1310+/-40 |
1490+/-10& 1550+/-10 |
1310+/-40& 1550+/-10 |
1310+/-40& 1490+/-10 |
1310+/-40 |
1550+/-10 |
|
Transmission IL (dB) |
0.8 (0.6 Typ.) |
||||||
|
Reflection IL (dB) |
0.6 (0.4 Typ.) |
||||||
|
Transmission Isolation (dB) |
30 |
||||||
|
Reflection Isolation (dB) |
15 |
||||||
|
Ripple (dB) |
0.3 |
||||||
|
PDL (dB) |
0.1 |
||||||
|
PMD (ps) |
0.1 |
||||||
|
RL (dB) |
45 |
||||||
|
Directivity (dB) |
50 |
||||||
|
Maximum Optical Power (mw) |
500 |
||||||
|
Operating Temperature (℃) |
-40～85 |
||||||
|
Storage Temperature (℃) |
-40～85 |
||||||
|
Package Dimension (mm) (Φ×L) |
Φ5.5*L34 |
||||||
