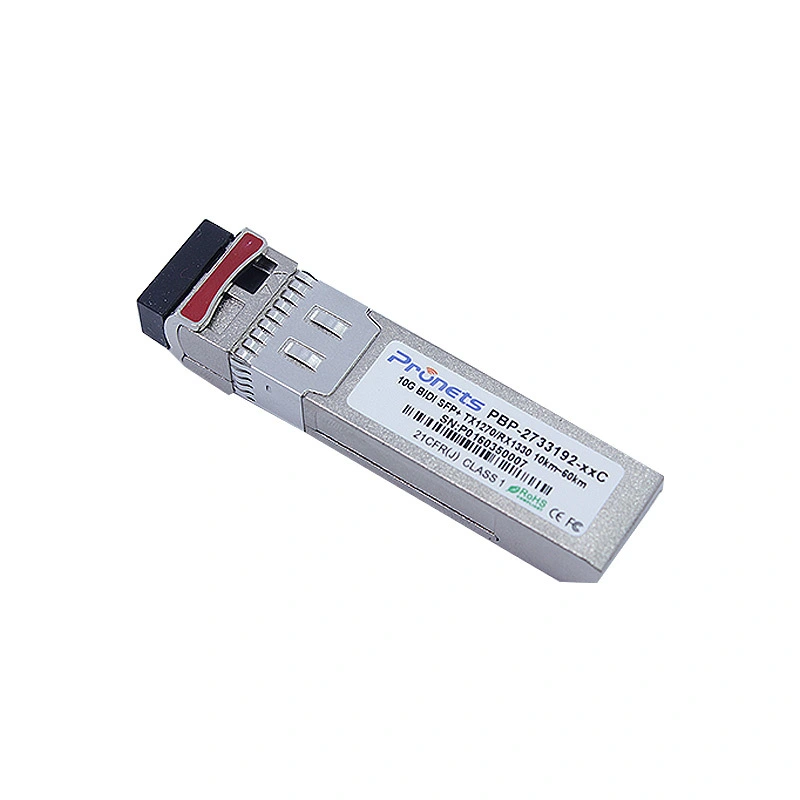

PBP-2733192-LRC 10GBase-LR 10Km T1270\R1330nm SFP+ Bidirectional Optical Transceiver

Features

Simplex LC Connector Bi-Directional SFP+ Optical Transceiver

Single 3.3V Supply

Up to10kmon 9/125um SMF

Two types：

A:1270nm DFB Laser transmitter,1330nm receiver

B:1330nm DFB Laser transmitter,1270nm receiver

Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW

SFP+ MSA SFF-8431 Compliant

Digital Diagnostic SFF-8472 Compliant

RoHS compliant and Lead Free

Operating case temperature: -5 ~70 °C

Applications

10GBASE-LR at 10.3125PBPs

10GBASE-LW at 9.953PBPs

Product description
The PBP-2733192-LRC series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae.
It is with the SFP+ 20-pin connector to allow hot plug capability.
The PBP-2733192-LRC module is designed for single mode fiber and operates at a nominal wavelength of 1270nm. The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.Other Optical Links
