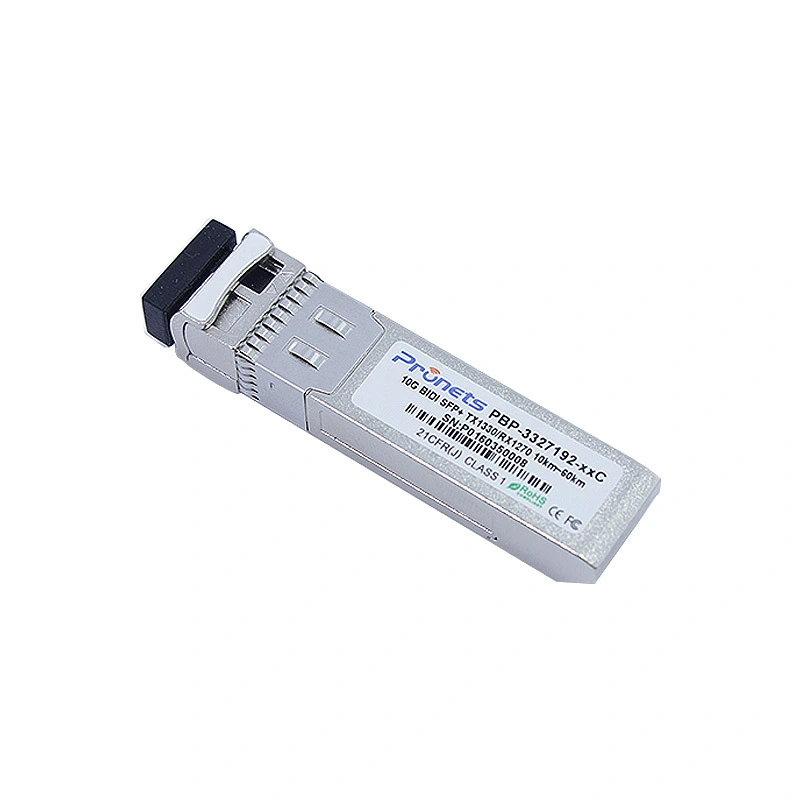

PBP-3327192-LRC 10GBase-LR 10Km T1330\R1270nm SFP+ Bidirectional Optical Transceiver

Features

Simplex LC Connector Bi-Directional SFP+ Optical Transceiver

Single 3.3V Supply

Up to10kmon 9/125um SMF 1330nm DFB Laser transmitter,1270nm receiver

Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW

SFP+ MSA SFF-8431 Compliant

Digital Diagnostic SFF-8472 Compliant

RoHS compliant and Lead Free

Operating case temperature: -5 ~70 °C

Applications
10GBASE-LW at 9.953GBPs
10GBASE-LR at 10.3125GBPs
Other Optical Links

Product description

The PBP-3327192-LRC series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae.
It is with the SFP+ 20-pin connector to allow hot plug capability.

The PBP-3327192-LRC module is designed for single mode fiber and operates at a nominal wavelength of 1330nm. The transmitter section uses a multiple quantum well DFB,
which is class 1 laser compliant according to International Safety Standard IEC-60825.

The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
