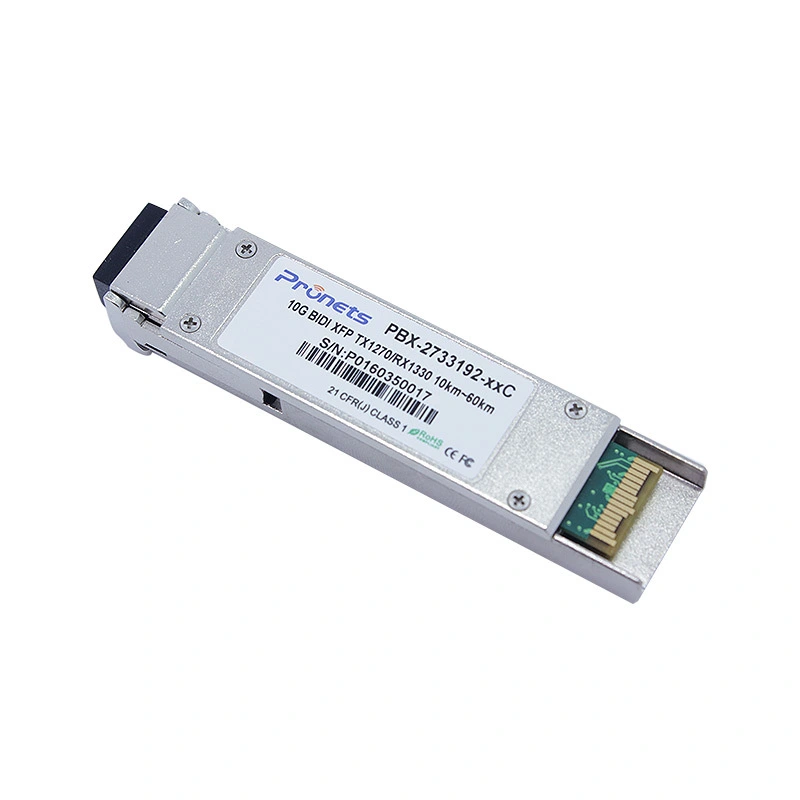

PBX-2733192-E6C 10GBase-BX 60Km Tx1270\Rx1330nm XFP Bidirectional Optical Transceiver

Features
Supports 9.95Gb/s to 10.3Gb/s data rates
Hot-pluggable XFP footprint

Maximum link length of60kmwith SMF

1270nm DFB laser Transmitter and 1330nm APD Receiver

XFP MSA package with LC connector

No reference clock required

LoopBack Support.

+3.3V，+1.8V power supply

Power dissipation <2W

Compatible with RoHS

Built-in digital diagnostic functions

Temperature range -5°C to70°C

Applications

10GBASE-ER10GEthernet at 10.3125Gbps

10GBASE-EW10GEthernet at 9.953Gbps

1200-SM-LL-L 1-0GFiber Channel at 10.51875Gbps

10GBASE-ER10GEthernet with FEC

Description

PRONETS PBX-2733192-E6Cis compliant with the IEEE803.3ae 10Gbase-Bx. and transmission distance up to 60km on SMF.

The transceiver module comprises a transmitter with a 1270/1330nm DFB laser transmitter and the receiver section consists of a APD photodiode integrated with a TIA,. Transmitter and receiver are separate within a wide temperature range of  0℃to +70℃and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
