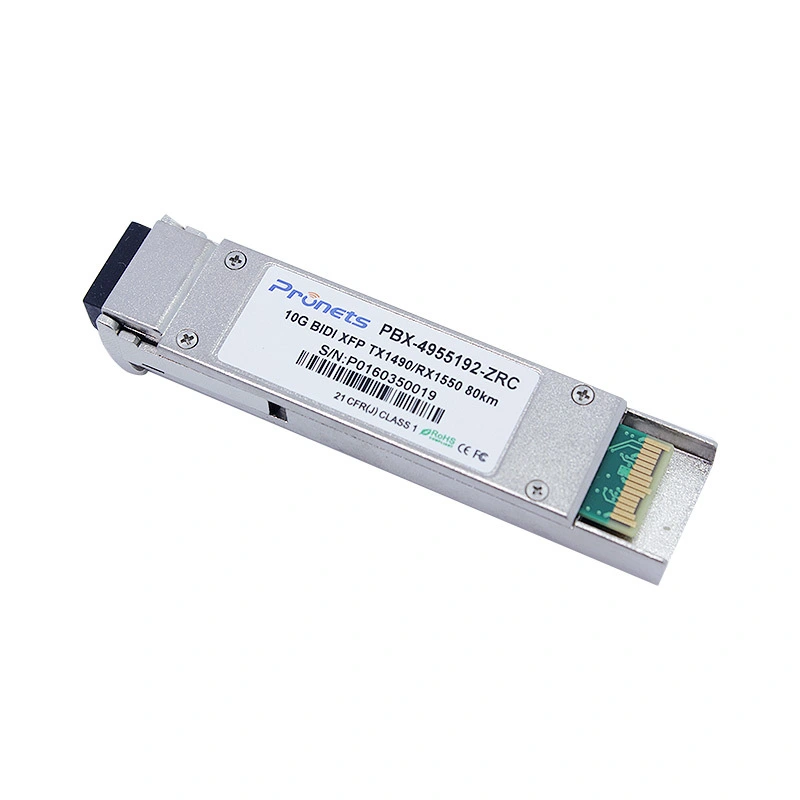

PBX-4955192-ZRC 10GBase-BX 80Km Tx1490\Rx1550nm XFP Bidirectional Optical Transceiver

XFP MSA package with single LC connector

Typical bidi 1490nm and 1550nmnm for commission

APD receiver for high sensitivity

Hot pluggable

Support 9.95Gb/s to 11.1Gb/s bit rates

Digital Diagnostic Monitor Interface

Very low EMI and excellent ESD protection

+3.3V single power supply

Below <1.5w power consumption

Operating temperature range 0°C to 70°C

No reference clock requirement

APPLICATIONS

10GBASE-BX 10.3125Gb/s Ethernet

10GBASE-BX 9.953Gb/s Ethernet

SONET OC-192 &SDH STM I-64.1

STANDARD

SFF-8472 reversion 9.5 compliant

IEEE802.3-2005 compliant

Telcordia GR-468-CORE compliant

FCC 47 CFR Part 15,Class B compliant

FDA 21 CFR 1040.10 and 1040.11,class1 com-pliant

RoHS compliant

DESCRIPTIONS

PRONETS  PBX-4955192-ZRC transceivers are designed for 10G Ethernet 10G BASE-LR/LW per 802.3ae and 10G SOI OC-192/SDH STM-64, and it can support data-rate from 9.953Gb/s to 11.1Gb/s.Digital diagnostics are avail-able via I2C interface as specified in the XFP MSA.

The transceiver designs are optimized for high per-formance and cost effective to supply customers the best solutions for data-com and telecom applications.
