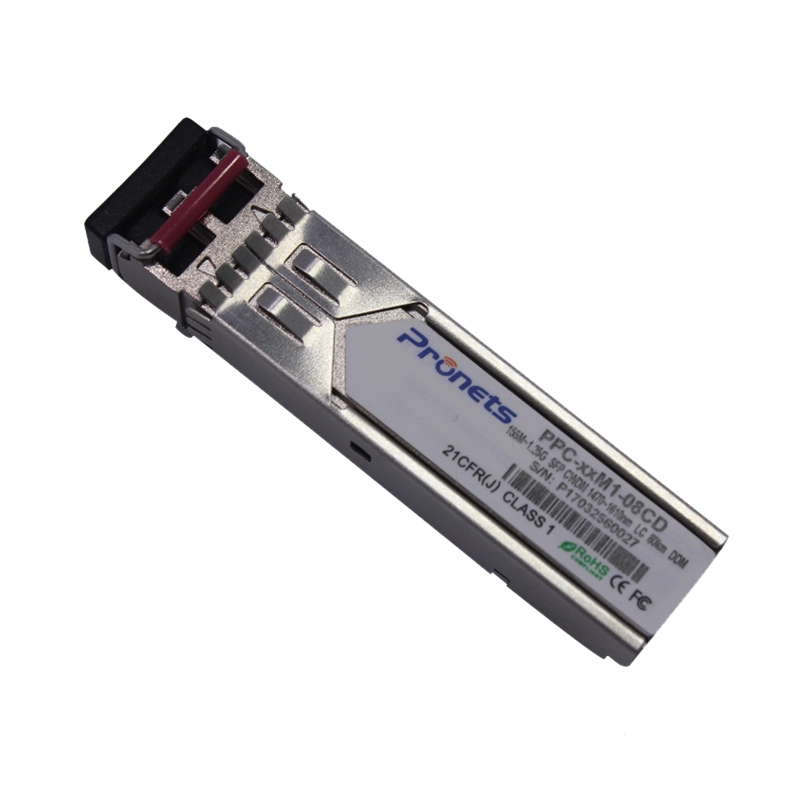

PPC-xxM1-08C(D) Multi-rate 155M~1.25Gbps CWDM C-Band 80Km SFP Optical Transceiver
5.0
like
Specification Download:
/uploads/www.pronetstec.com/addon/14948431924018.pdf
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Features
Multi-rate of 155M~1.25Gbps operation
8 CWDM DFB wavelengths laser and PIN photodetector for 80km transmission
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring:Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Operating case temperature:Standard : 0 to +70°C
Applications
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems
Description
The SFP transceivers are high performance, cost effective modules supporting multi-rate of 155M~1.25Gbps and 80km transmission distance with SMF.
The transceiver consists of three sections: an uncooled CWDM DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Multi-rate of 155M~1.25Gbps operation
8 CWDM DFB wavelengths laser and PIN photodetector for 80km transmission
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring:Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Operating case temperature:Standard : 0 to +70°C
Applications
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems
Description
The SFP transceivers are high performance, cost effective modules supporting multi-rate of 155M~1.25Gbps and 80km transmission distance with SMF.
The transceiver consists of three sections: an uncooled CWDM DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
