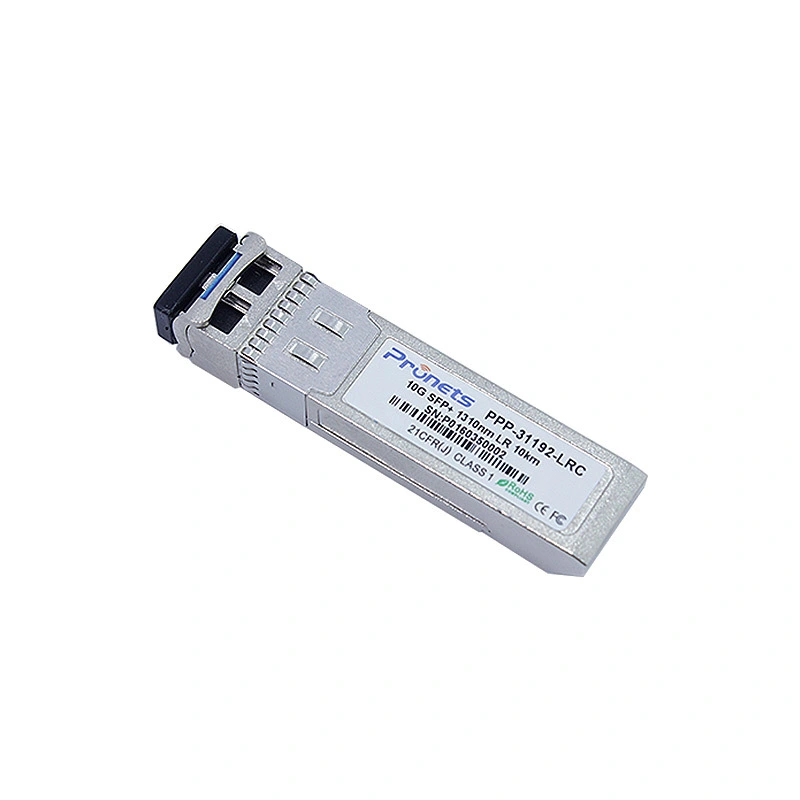

PPP-31192-LRC 10GBase-LR 1310nm 10Km SFP+ Optical Transceiver

Features

Optical interface compliant to IEEE 802.3ae 10GBASE-LR

Electrical interface compliant to SFF-8431

Hot Pluggable

1310nm DFB transmitter, PIN photo-detector

Operating case temperature: 0 to 70 °C

Low power consumption

Applicable for10kmSMF connection

All-metal housing for superior EMI performance

Advanced firmware allow customer system encryption information to be stored in transceiver

Cost effective SFP+ solution, enables higher port densities and greater bandwidth

Applications

10GBASE-LR at 10.3125Gbps

10GBASE-LW at 9.953Gbps

Other optical links

Product description

This 1310nm DFB  10Gigabit SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 10km.

The SFP+ LR module electrical interface is compliant to SFI electrical specifications.  The transmitter input and receiver output impedance is 100 Ohms differential.  Data lines are internally AC coupled.  The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI.  SFI typically operates over 200mm of improved FR4 material or up to about 150mm of standard FR4 with one connector.
