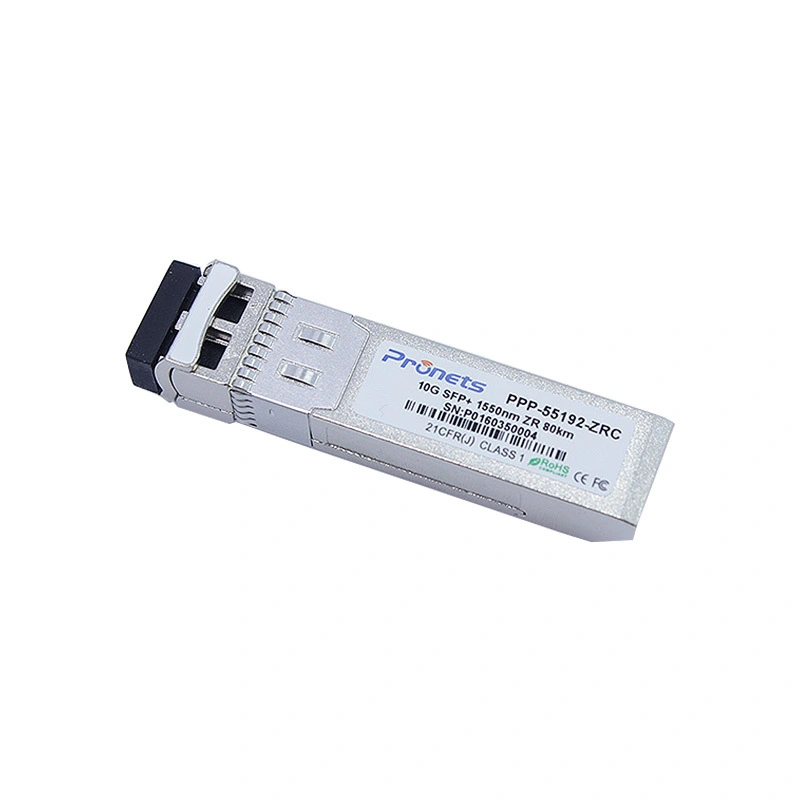

PPP-55192-ZRC 10GBASE-ZR 8.5G\10G Fiber-Channel 1550nm SFP+ Optical Transceiver

Features

Compliant with SFF-8431 and IEE802.3ae

Data rate selectable ≤4.25Gbps or 9.95Gbps to 11.3Gbps bit rates

Cooled EML transmitter and APD receiver

Link length up to 80km

Low Power Dissipation 1.4W Typical (Maximum:2W)

-5ºC to 70ºC Operating Case Temperature

Single 3.3V power supply

Diagnostic Performance Monitoring of module temperature, supply voltages, laser bias current, transmit optical power, receive optical power

RoHS compliant and lead free

Applications

10G Ethernet

10G Fiber Channel (with/without FEC)

Description

Pronets SFP+ZR Transceiver is designed for 8.5G/10G Fiber- Channel and 10GBE applications. The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Pronets SFP+ZR Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
