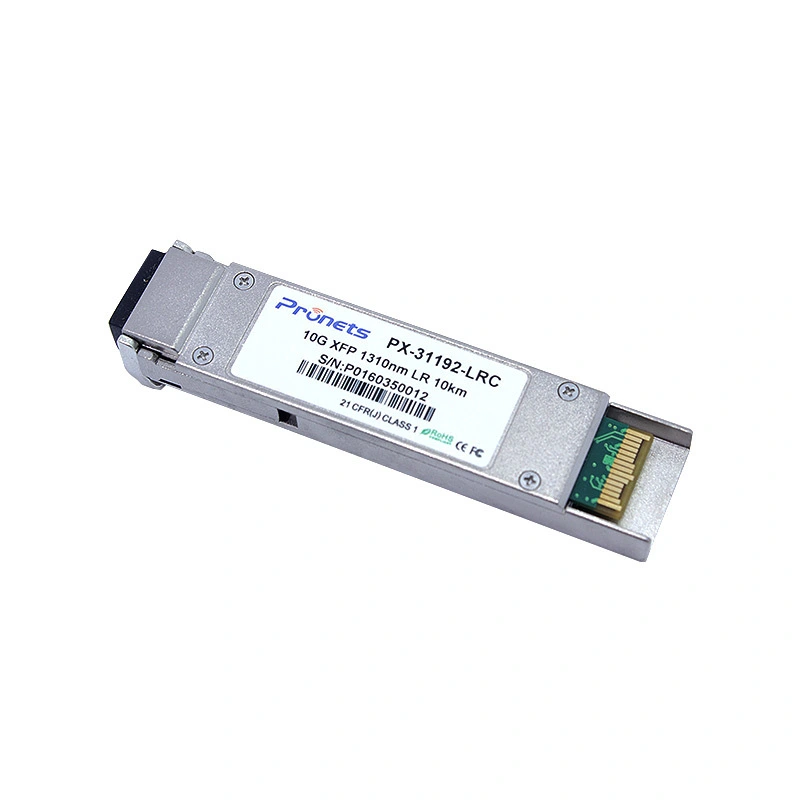

PX-31192-LRC 10GBASE-LR 1310nm 10~20Km XFP Optical Transceiver

Features

Supports 9.95Gb/s to 11.1Gb/s bit rates
Hot-pluggable XFP footprint

Maximum link length of 10km ~20km with SMF

1310nm Uncooled DFB laser

XFP MSA package with duplex LC connector

No reference clock required

Compatible with RoHS

+3.3V +1.8V power supply

Power dissipation <2.5W

Built-in digital diagnostic functions

Temperature range 0°Cto70°C

Applications

SDH STM I-64.1 at 9.953Gbps

10GBASE-LR/LW10GEthernet

1200-SM-LL-L10GFibre Channel

10GE over G.709 at 11.09Gbps

OC192 over FEC at 10.709Gbps

Other optical links, up to 11.1Gbps

Description

Pronets PX-31192-LRC is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps (10GBASE-LR) or 9.953Gbps 10GBASE-LW), and transmission distance up to 20km on SMF.

The transceiver module comprises a transmitter with 1310nm uncooled DFB laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
