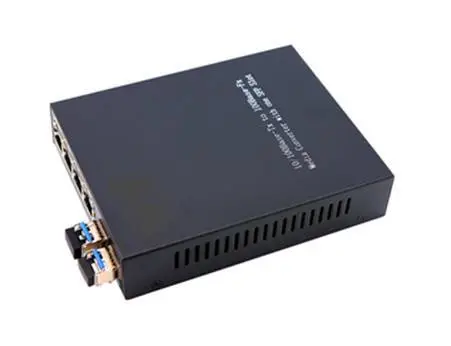

10/100/1000M Fiber Ethernet Media Converter With 4 RJ45 Ports & 2 Fiber Ports

Features
1) 4 ports 10/100/1000M ethernet switch with built in transceivers and memory
2) Build in RAM for frame buffer
3) Build in storage of 1K MAC address
4) Compliance with IEEE802.3, 802.3u, 802.3x standard
5) Compliance CSMA/CD Protocol
6) Converter twisted-pair cable to 100Base-Fx fiber
7) Support 10/100/1000Mbps auto-negotiation for RJ45 ports
8) Support auto MDI/MDI-X function for RJ45 ports
9) Passed maximum frame size 1536 bytes
10) Broadcast storm protection
11)  Fiber Port SC/PC (single/multi-mode ),the transmission distance can up to 120Km.RJ45 Port: 100m for 100Base-Tx UTP Cat.5 cable
11) Inside power: AC 220/110V
12) Power Consume: < 5W

Overview

The 10/100/1000M Fiber Ethernet Media Converter series is designed to meet the massive needs for network deployment and able to extend a copper based Fast network via fiber cable to a maximum distance up to 120KM.

Our 10/100/1000M Fiber Ethernet Media Converter series is fully compliant with IEEE802.3, IEEE802.3U, 10/100/1000Base-TX, 1000Base-FX, standards. The installation & operation procedures are simple & straightforward. Operation status can be locally monitored through a set of Diagnostic LED lamps.
