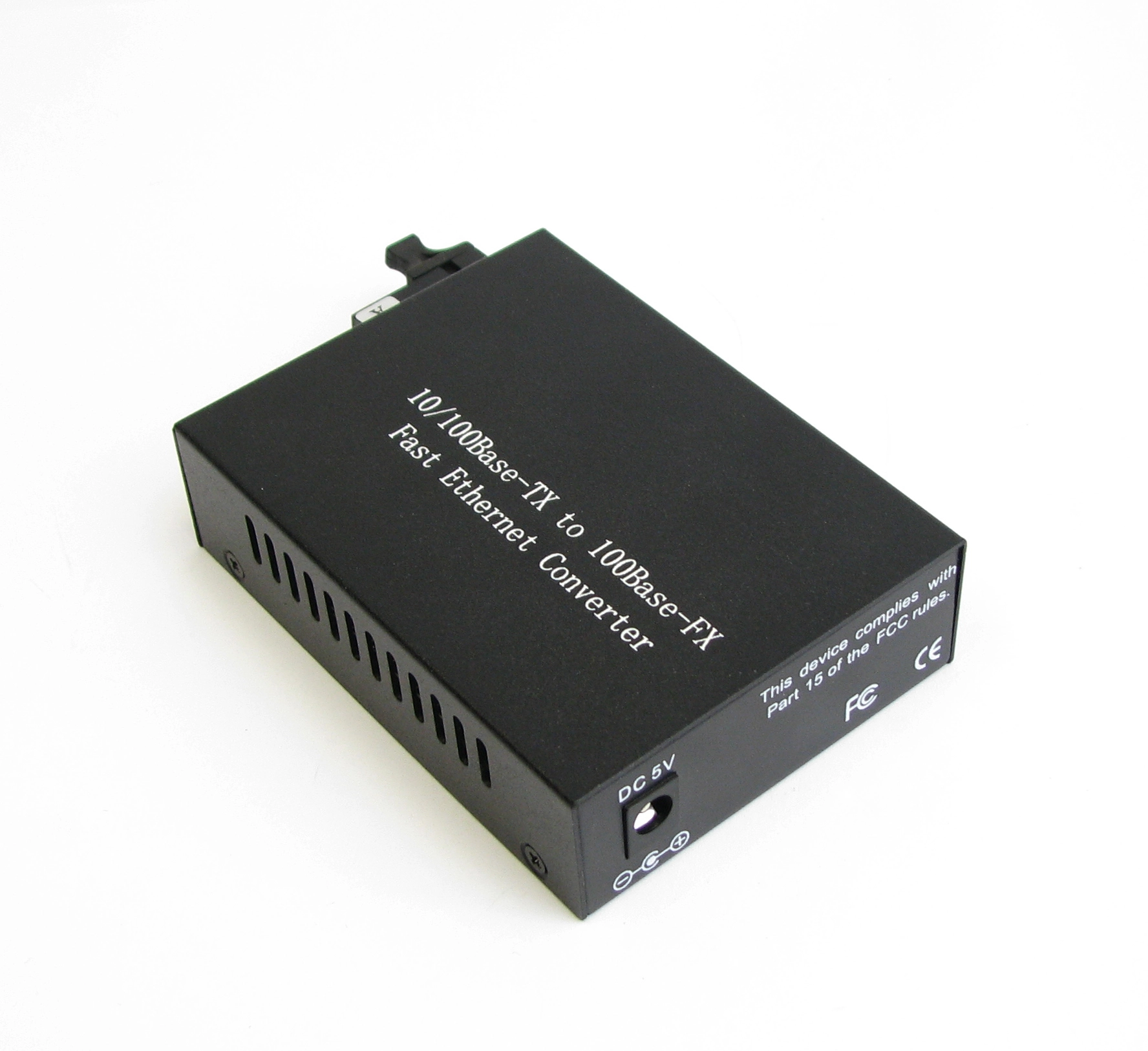

10/100M Fiber Ethernet 4 RJ45 Ports & 1 Fiber Port Media Converter

Features
10/100Base-TX to 100Base-FX Media Converter
1) 5 ports 10/100M ethernet switch with built in transceivers and memory;
2) Build in SRAM for frame buffer;
3) Build in storage of 1K MAC address;
4) Compliance with IEEE802.3, 802.3u, 802.3x standard;
5) Compliance CSMA/CD Protocol;
6) Converter twisted-pair cable to 100Base-Fx fiber;
7) Support 10/100Mbps auto-negotiation for RJ45 ports;
8) Support auto MDI/MDI-X function for RJ45 ports;
9) Passed maximum frame size 1536 bytes;
10) Broadcast storm protection;
11) Fiber Port SC/PC (single/multi-mode ),the transmission distance can up to 120Km.
RJ45 Port: 100m for 100Base-Tx UTP Cat.5 cable.
12) Inside power: AC 220/110V
13) Power Consume: < 5W.

Overview
The 10/100M Fiber Ethernet Media Converter series is designed to meet the massive needs for network deployment and able to extend a copper based Fast network via fiber cable to a maximum distance up to 120KM.
Our 10/100M Fiber Ethernet Media Converter series is fully compliant with IEEE802.3, IEEE802.3U, 10/100Base-TX, 100Base-FX,standards. The installation & operation procedures are simple & straightforward. Operation status can be locally monitored through a set of Diagnostic LED lamps.
