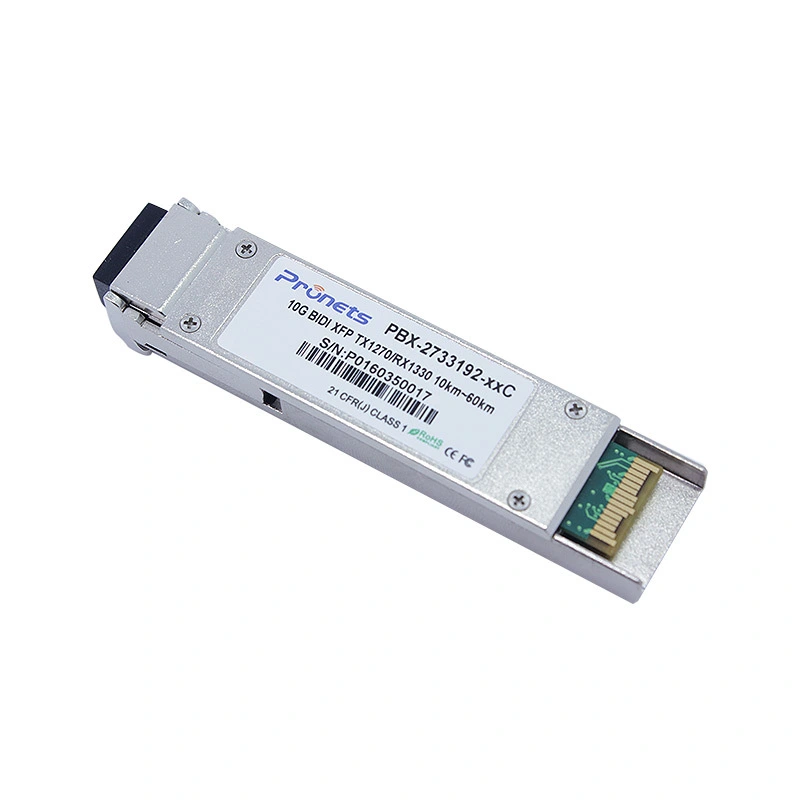

PBX-2733192-L2C 10GBase-BX 20Km Tx1270\Rx1330nm XFP Bidirectional Optical Transceiver

Features

Supports 9.95Gb/s to 10.5Gb/s bit rates

Hot-pluggable XFP footprint

Maximum link length of 20kmwith SMF

1270nm DFB laser Transmitter and 1330nm Receiver

XFP MSA package with LC connector

No reference clock required

LoopBack Support

+3.3V，+1.8V power supply

Power dissipation <2W

Compatible with RoHS

Built-in digital diagnostic functions

Temperature range -5°C to70°C

Applications

10GBASE-LR at 10.3125Gbps

10GBASE-LW at 9.953Gbps

10GBASE-BX10GEthernet

10GBASE-BX10GEthernet with FEC

Description

PRONETS PBX-2733192-L2Cis compliant with the IEEE803.3ae 10Gbase-Bx. and transmission distance up to 20km on SMF.

The transceiver module comprises a transmitter with a 1270nm DFB laser transmitter, an integrated 1330nm detector preamplifier(IDP) mounted in an optical header and a limiting post-amplifier IC. Transmitter and receiver are separate within a wide temperature range of  -5℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10GbE systems.
