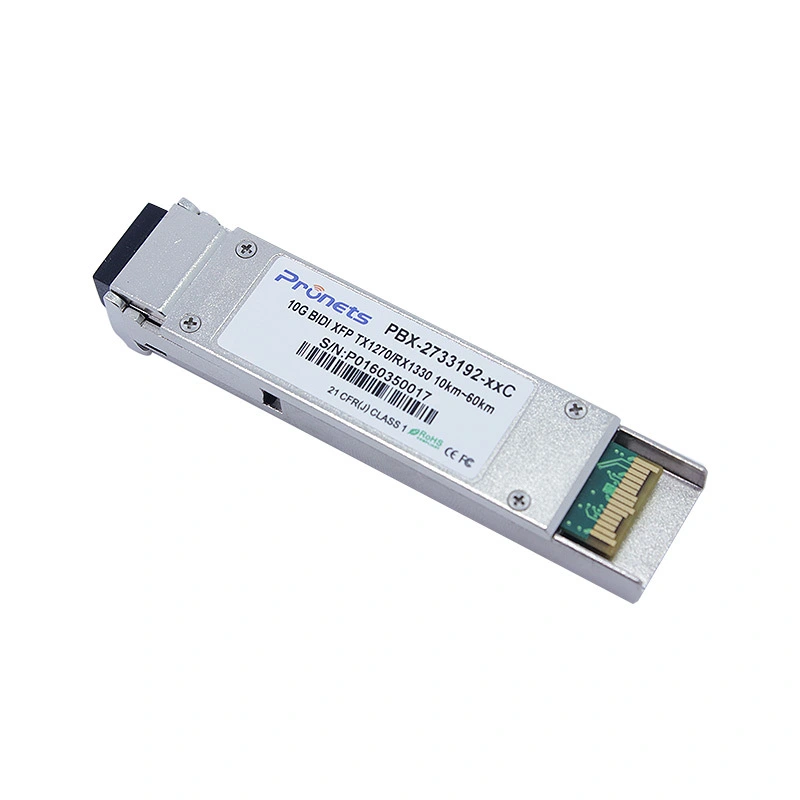

PBX-2733192-LRC 10GBase-BX 10Km Tx1270\Rx1330nm XFP Bidirectional Optical Transceiver

Features

Supports 9.95Gb/s to 11.1Gb/s bit rates

Hot-pluggable XFP footprint

Maximum link length of10 km with SMF

1270DFB laser Transmitter and 1330nm Receiver

XFP MSA package with LC connector

No reference clock required

LoopBack Support.

+3.3V，+1.8V power supply

Power dissipation <2W

Compatible with RoHS

Built-in digital diagnostic functions

Temperature range0°Cto70°C

Applications

10GBASE-BX  10GEthernet

Description

PRONETS PBX-2733192-LRC is compliant with the IEEE803.3ae 10Gbase-Bx. and transmission distance up to 10km on SMF.

The transceiver module comprises a transmitter with a 1270nm DFB laser transmitter, an integrated 1330nm detector preamplifier(IDP) mounted in an optical header and a limiting post-amplifier IC. Transmitter and receiver are separate within a wide temperature range of  0℃to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
