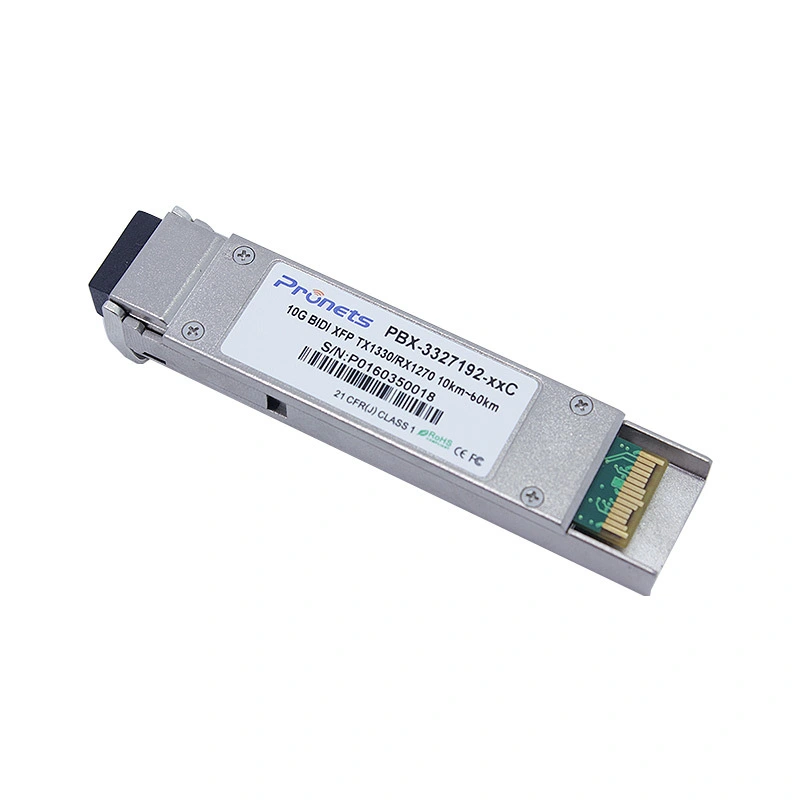

PBX-3327192-LRC 10GBase-BX 10Km Tx1330\Rx1270nm XFP Bidirectional Optical Transceiver

Features
Supports 9.95Gb/s to 11.1Gb/s bit rates

Hot-pluggable XFP footprint

Maximum link length of10kmwith SMF

1330nm DFB laser Transmitter and 1270nm Receiver

XFP MSA package with LC connector

No reference clock required

LoopBack Support.

+3.3V，+1.8V power supply

Power dissipation <2W

Compatible with RoHS

Built-in digital diagnostic functions

Temperature range -5°C to70°C

Applications

10GBASE-BX10GEthernet

Description

PRONETS PBX-3327192-LRC is compliant with the IEEE803.3ae 10Gbase-Bx. and transmission distance up to 10km on SMF.

The transceiver module comprises a transmitter with a 1330nm DFB laser transmitter, an integrated 1330/1270nm detector preamplifier(IDP) mounted in an optical header and a limiting post-amplifier IC. Transmitter and receiver are separate within a wide temperature range of  -5℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
