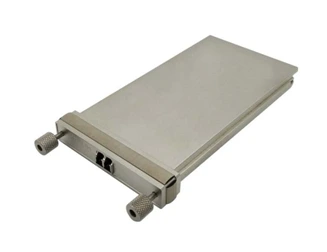

PCFP-100G-LR4C 100GBASE-LR4 LWDM(1295.56,1300.05,1304.58,1309.14nm) 10km CFP Transceiver

Features
♦ Operating optical data rate up to 112Gbps
♦ Transmission distance up to 10km
♦  CFP MSA compliant
♦ Compliant to 100GbE IEEE 802.3ba specification for 100GBASE-LR4 links
♦  OTU4 compatible
♦  1310 nm window cooled EA-DFB LD and PIN ROSA
♦  Built in digital diagnostic function
♦ 10 parallel electrical serial interface and AC coupling of CML signals
♦ Hot pluggable electrical interface
♦ Low power dissipation<9W
♦ Operating case temperature 0°C to +70°C ♦ Single 3.3V power supply
♦  RoHS 6 compliant(lead free)

Applications
♦ 100GbE IEEE 802.3ba 100GBASE-LR4
♦ OTN-OTU4
♦  Switch to switch interface or Switch to router interface

Description
The 100GBASE-LR4 CFP module is the CFP optical transceiver which is a hot pluggable form factor designed for high speed optical networking application. The module is designed for 100Gigabit Ethernet application and provides 100GBASE-LR4 compliant optical interface, CAUI electrical interface and MDIO module managementinterface. The module converts 10-lane 10.3Gb/s electrical data streams to 4-lane LAN-WDM25.78Gb/s optical output signal and4-laneLAN-WDM25.78Gb/s optical inputsignal to 10-lane10.3Gb/s electrical data streams. This 10-lane 10.3Gb/s electrical signal is fully compliant with802.3ba CAUI specification and allows FR4 host PCB trace up to 25cm. The high performance Cooled LAN-WDM EML transmitter and high sensitivity PIN receiver provide superior performance for 100Gigabit.
Ethernet applications up to 10km links and compliant optical interface with IEEE802.3ba Clause  100GBASE-LR4 requirements.
