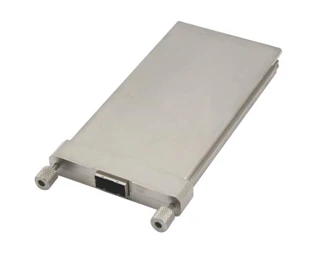

PCFP-100G-QSFP28-AD 100GBASE-LR4/SR4 CFP to QSFP28 Optical Transceiver Adapter

Features
• Compliant to CFP Hardware Specification Version 1.4
• Compliant to CFP MSA Management Interface Specification Version 2.2
• Converts 10 bidirectional 10G lanes to 4 bidirectional 25G lanes
• 1 port QSFP28 TX&RX
• Support 100G IEEE 802.3bj NRZ FEC
• Transmission data rate up to 28Gbps per channel
• OTU4 compatible（FEC is invalid when OTU4 data rate mode is on)
• FEC is configurable
• MDIO digital diagnostic interface and control capabilities
• Power class 2 (Adapter<5W max)
• Hot pluggable electrical interface
• Operating case temperature:0°C~ +70°C
• Single 3.3V power supply
• RoHS 6 compliant(lead free)

Applications
• 100GBE interconnects, IEEE 802.3ba 100GBASE-LR4(Adapter+QSFP28_LR4),
IEEE 802.3bm 100GBASE-SR4(Adapter+QSFP28_SR4)
• High-speed core router connections& Datacom/Telecom switch
• Data aggregation and backplane applications
• Proprietary protocol and density application

Description
The 100G CFP to QSFP28 Adapter module is a high performance, hot pluggable, and interconnect solution supporting 100G Ethernet and Telecom. The Adapter converts a CFP MSA interface to 1-port of 100GE QSFP28.It is compliant with the CFP MSA. Pronets100G CFP to QSFP28 Adapter module converts 10 bidirectional 10G channels to 4 bidirectional 25G channels operating at up to 28Gbps per channel. The Adapter supports FEC (Forward Error Correction) function; the user can enable the FEC function through the register configuration.
