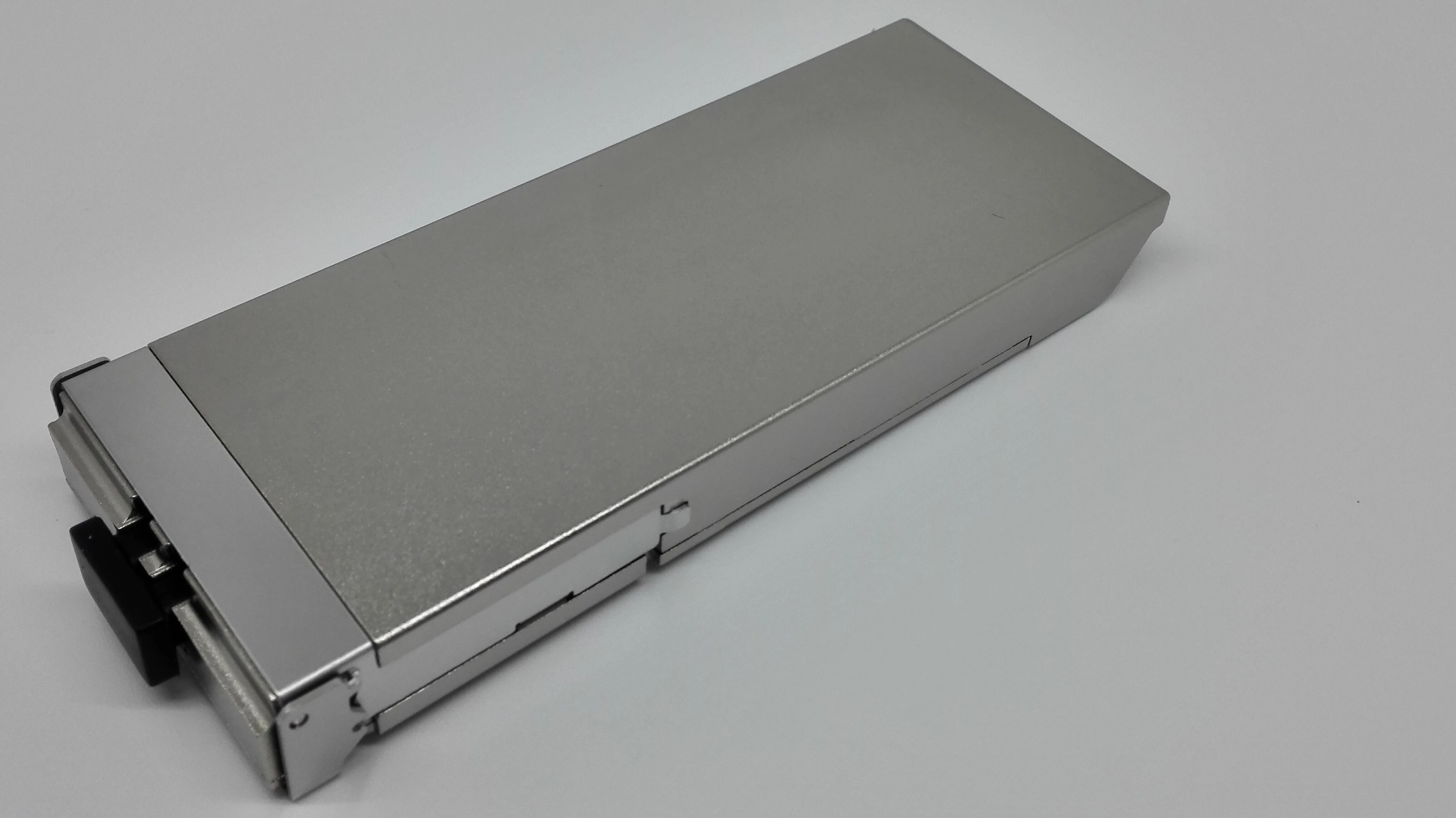

PCFP2-100G-ER4C 100GBASE-ER4 LAN-WDM(1295.56~1309.14nm) 30km CFP2 Transceiver

Features
●Supports up to 112Gbps bitrates
●Duplex LC connector
●Hot pluggable
●Operating electrical serial data rate up to 27.952493Gbps
●APD ROSA
●4 parallel electrical serial interface
●Applicable for 30km SMF connection
●Low power consumption, < 12W
●Digital Diagnostic Monitor Interface
●MDIO Communication Interface
●Compliant with 100GBASE-ER4
●Operating case temperature: Commerical:0 to 70 °C

Applications
●Local Area Network(LAN)
●Wide Area Network(WAN)
●Switch to router interface

Standards
●Compliant with IEEE 802.3ba
●Compliant with CFP2 MSA hardware specifications
●Compliant with CFP2 MSA management specifications
●Compliant with ITU-T G709/Y.1331
●Compliant with RoHS

Description
PCFP2-100G-ER4, The 100G CFP2 ER4 optical transceiver integrates the transmit and receive path onto one module. On the transmit side, four lanes of serial data streams are recovered, retimed,and passed on to four laser drivers, which control four electric-absorption modulated lasers (EMLs) with 1296, 1300, 1305, and 1309 nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector.On the receive side, four lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver.This module features a hot-pluggable electrical interface, low power consumption, and MDIO management interface.
