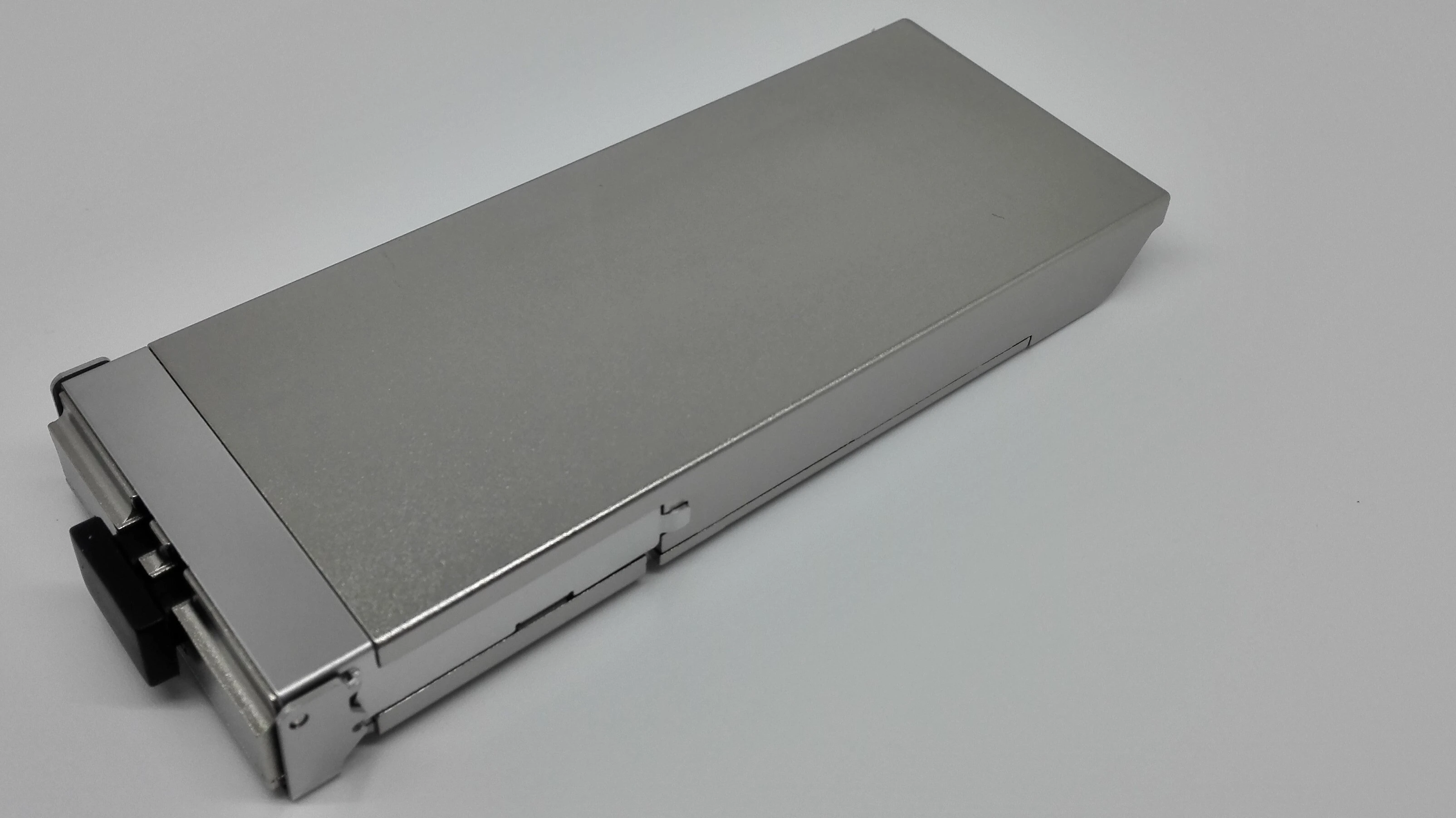

PCFP2-100G-LR4C 100GBASE-LR4 LAN-WDM 1295.56~1309.14 10Km CFP2 Optical Transceiver

FEATURES
 Duplex LC receptacle optical interface
 Single +3.3V power supply
 Hot-pluggable
 Operating optical data rate up to 112Gbps
 Operating electrical serial data rate up to 27.952493Gbps
 4 parallel electrical serial interface
 AC coupling of CML signals
 APD (ROSA)
 Low power dissipation(Max:6W)
 Built in digital diagnostic function
 Operating case temperature range:0℃ to 70℃
 Compliant with 100GBASE-LR4 and OTU4
 MDIO Communication Interface
 Compatible with all kinds of commercial ONT

APPLICATIONS
 Local Area Network(LAN)
 Wide Area Network(WAN)
 Switch to router interface
 ITU-T OTU4 OTL4.4 applications

Standards
 Compliant with IEEE 802.3ba
 Compliant with CFP2 MSA hardware specifications
 Compliant with CFP2 MSA management specifications
 Compliant with ITU-T G709/Y.1331
 Compliant with RoHS
