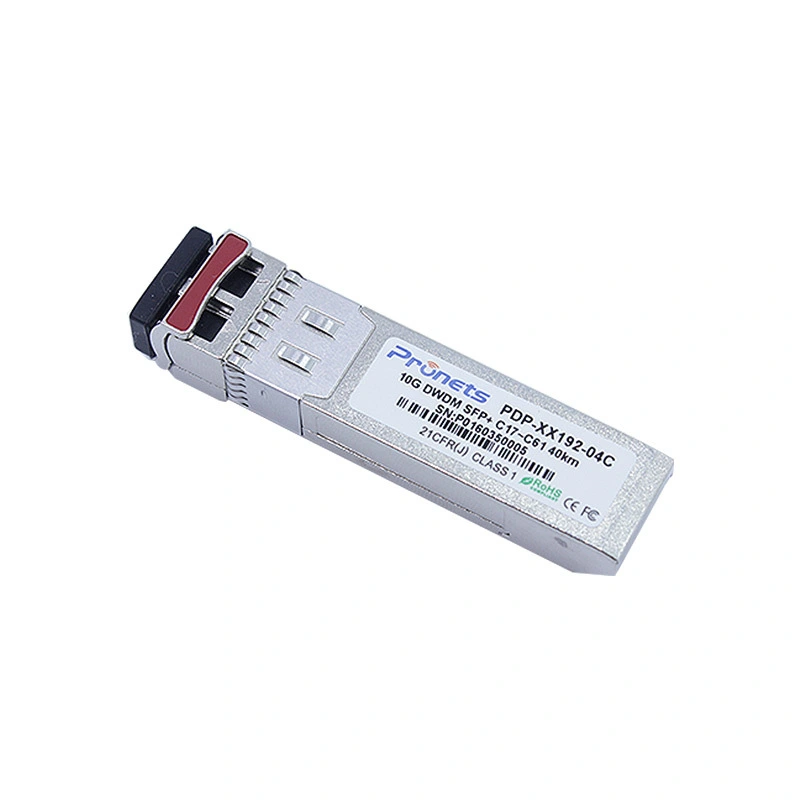

PDP-xx192-04C 10GBASE-ER,8.5G/10G Fiber-Channel DWDM SFP+ 40KM Optical Transceiver

 Features

Compliant with SFF-8431 and IEE802.3ae

Suitable for use in 100GHz channel spacing DWDM systems

Data rate selectable ≤4.25Gbps or 9.95Gbps to 10.3Gbps bit rates

Cooled EML transmitter and PIN receiver

Link length up to 40km

Low Power Dissipation 1.5W Maximum

-5ºC to 70ºC Operating Case Temperature

Single 3.3V power supply

Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power

RoHS compliant and lead free

Applications

10GBASE-ER/EW (with/without FEC)

10G Fiber Channel (with/without FEC)

Description

Pronets SFP+ER DWDM Transceiver is designed for 10GBASE-ER/EW, and 8.5G/10G Fiber- Channel applications.

The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
