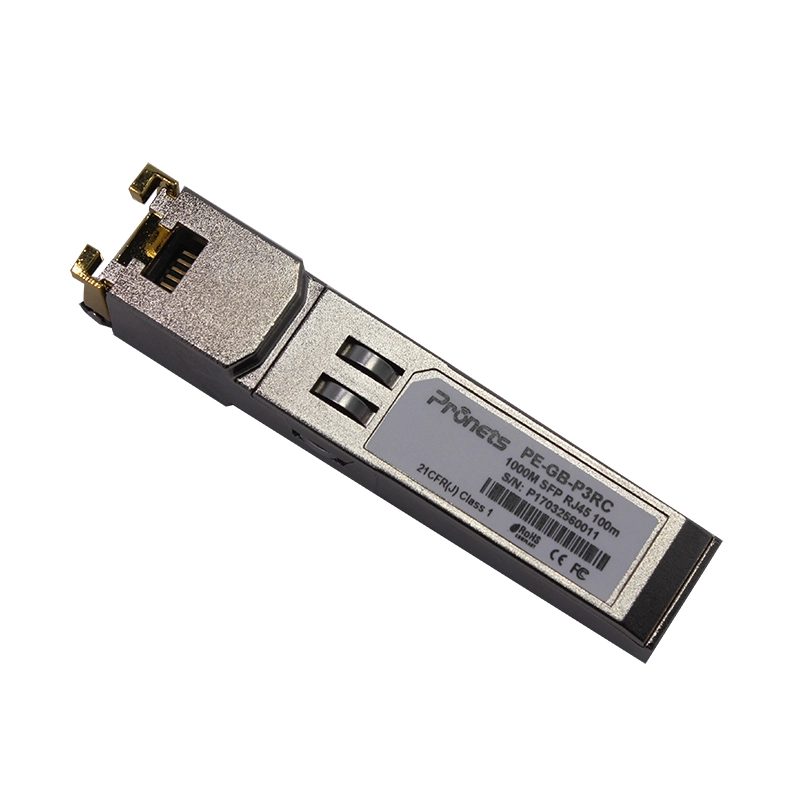

PE-GB-PxRC-x 1000 BASE-T SERDES interface & 10/100/100M SGMII interface SFP-RJ45

Features
  Up to 1.25Gb/s bi-directional data links
  Hot-pluggable SFP footprint
  TX Disable and RX Los/without Los function
  Extended case temperature range (0°C to +70°C )
  Fully metallic enclosure for low EMI
  Low power dissipation (1.05 W typical)
  Compact RJ-45 connector assembly
  Access to physical layer IC via 2-wire serial bus
  1000 BASE-T operation in host systems with SERDES interface
  10/100/1000Mbps compliant in host systems with SGMII interface

Applications
  1.25 Gigabit Ethernet over Cat 5 cable

Description
Pronets`s PE-GB-PxRC-x Copper Small Form Pluggable (SFP)transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supp- orting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The module supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address ACh.
