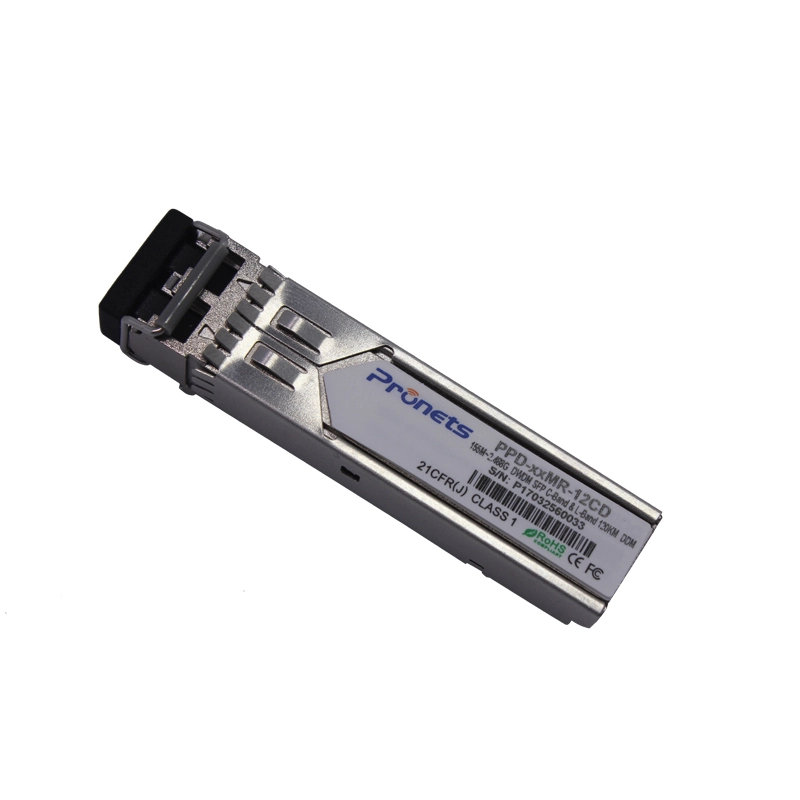

PPD-xxXX-xxCD Up to 2. 667G DWDM C-Band or L-Band 80~120KM SFP Optical Transceiver

Features
  Wavelength selectable to C-band and L-band ITU-T grid wavelengths
  Suitable for use in 100GHz channel spacing DWDM systems
  DWDM SFP MSA Compliant
  Up to 2. 667Gb/s data rate
  Cold Start up Wavelength Compliance
  Low Power Dissipation <1.3W Maximum
  -5ºC to 70ºC Operating Case Temperature
  Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power, Laser temperature and TEC current
  Extended link budget with APD receiver technology
  OC48/STM-16 Long Reach 80km(1600 ps/nm), 120km(2400 ps/nm) Versions
  RoHS compliant and lead free

Applications
  SFP Transceivers for DWDM SONET/ SDH
  Ethernet IEEE 802.3ae
  Fiber Channel

Description
Pronets DWDM SFP Transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for DWDM SONET/ SDH, Gigabit Ethernet and Fiber- Channel applications.
The transceiver consists of two sections: The transmitter section incorporates a colded DFB laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Pronets DWDM SFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage, laser temperature and TEC current.
