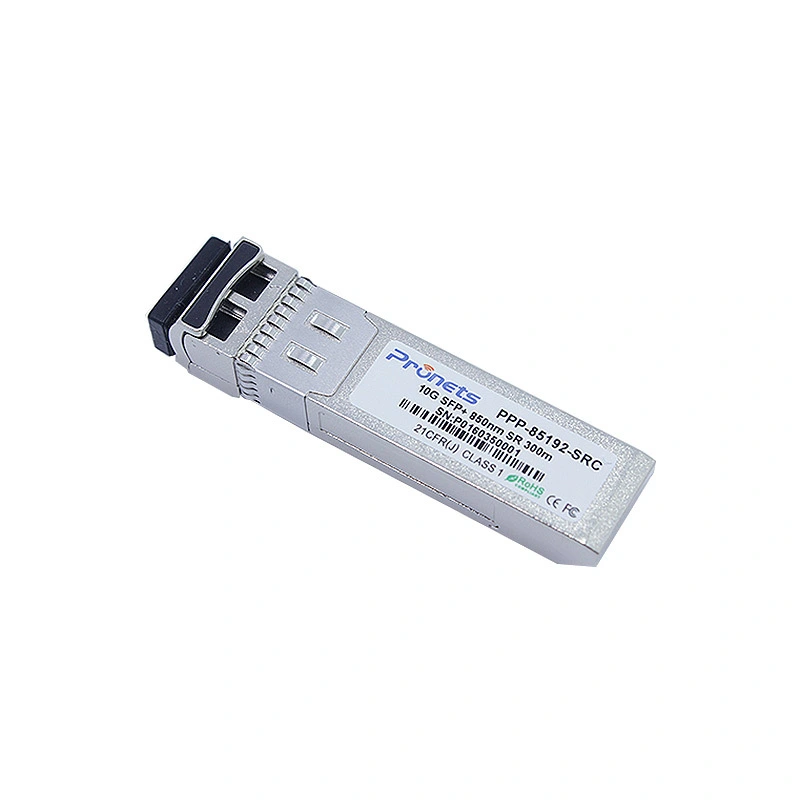

PPP-85192-SRC 10GBASE-SR 850nm 300m SFP+ Optical Transceiver
Features
Optical interface compliant to IEEE 802.3ae 10GBASE-SR
Electrical interface compliant to SFF-8431
Hot Pluggable
850nm VCSEL transmitter, PIN photo-detector
Maximum link length of 300mon 2000MHz/km MMF
Operating case temperature: -5 to70℃
Low power consumption
All-metal housing for superior EMI performance
Advanced firmware allow customer system encryption information to be stored in transceiver
Cost effective SFP+ solution, enables higher port densities and greater bandwidth
Applications
10GBASE-SR at 10.3125Gbps
10GBASE-SW at 9.953Gbps
Other optical links
Description
This 850 nm VCSEL 10Gigabit SFP+ transceiver is designed to transmit and receive optical data over 50/125 μm or 62.5/125 μm multimode optical fiber.The SFP+ SR module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over
