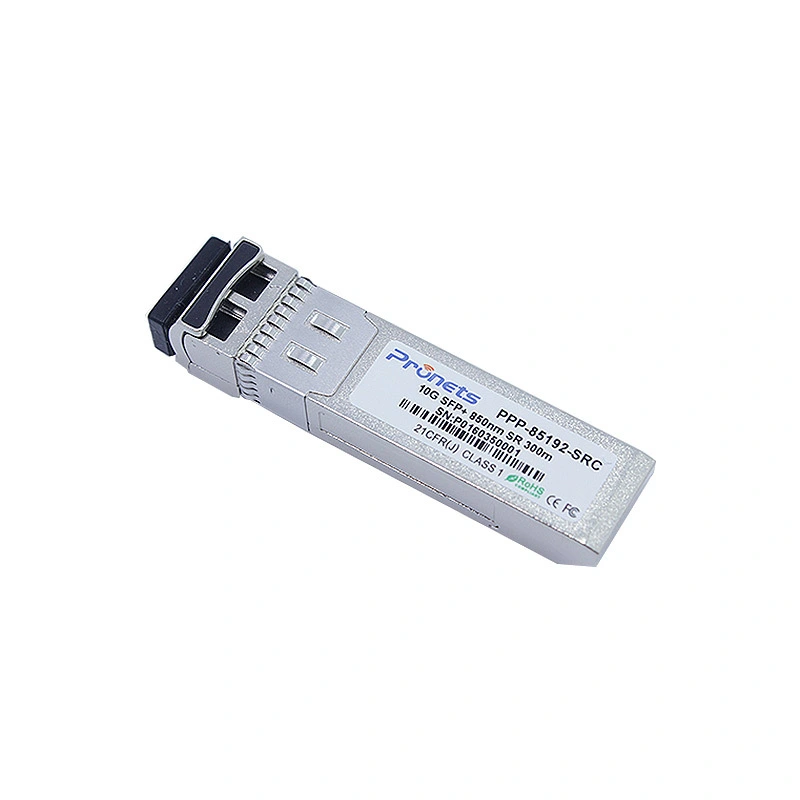

PPP-85192-SRCM Dual-Rate(1000Base-SX,10GBase-SR\SW)850nm SFP+ Optical Transceiver

Features
Hot-pluggable SFP+ footprint
Supports rate selectable 1.25 Gb/s or 9.95 to 10.3 Gb/s bit rates
Power dissipation < 1W
RoHS-6 compliant ( lead-free )
Single 3.3V power supply
Maximum link length of300mon 2000 MHZ-km MMF
Uncooled 850nm VCSEL laser
Receiver limiting electrical interface
Duplex LC Connector
Built-in digital diagnostic functions
Commercial temperature range -5℃ to70℃

Applications
1000BASE-SX1GEthernet
10GBASE-SR/SW10GEthernet
Other optical links

Description

PRONETS’s PPP-85192-SRCM 1G/10GDual-Rate SFP+ transceivers are designed for use in 1-Gigabit and 10-Gigabit Ethernet links over multimode fiber. They are compliant with SFF-8431, IEEE 802.3-2005 10GBASE-SR/SW and 1000BASE-SX. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The PPP-85192-SRCM is a “limiting module”, i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer’s recommended settings for interoperability with an SFP+ limiting module. This product is for applications specifically designed for 10G SFP+ ports and1G/10GSFP+ ports and not native1GSFP ports. The transceiver is RoHS compliant and lead free per Directive 2002/95/EC5.
