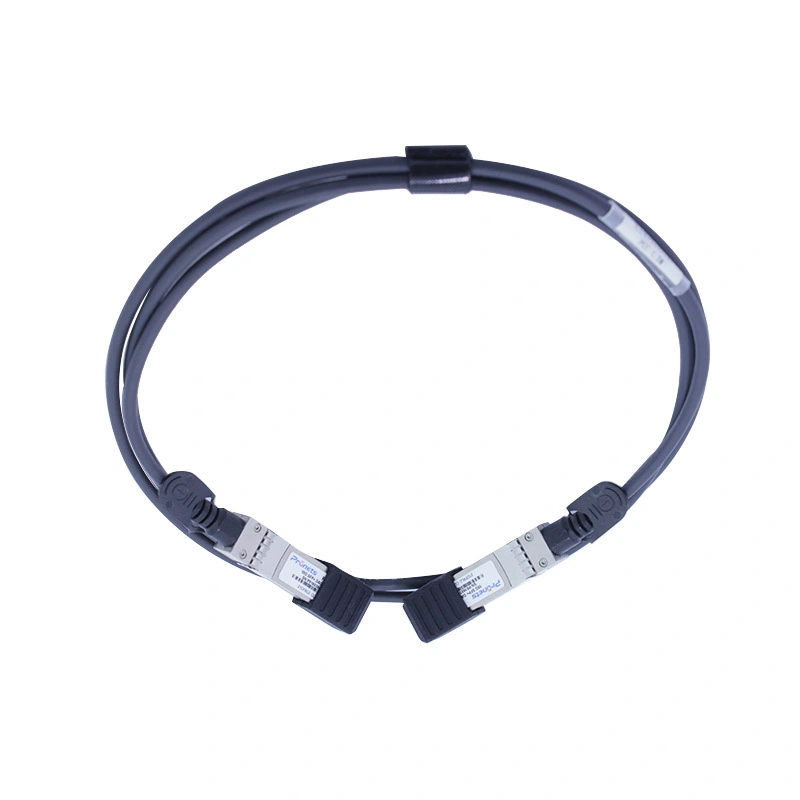

PPP-PC192-xxAxC Multi-Rata 1G\2G\4G\8G Fiber Channel 0~5m SFP+ to SFP+ Passive Cable

Support for multi-gigabit data rates up to 10.5Gbps

Data rates backward compatible to 1Gbps

Support for 1x, 2x, 4x and 8x Fiber Channel data rates

Hot-pluggable SFP 20PIN footprint

I/O Connector designed for high speed differential signal applications

Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance

Low Power Consumption < 0.5W

Power Supply :+3.3V

Compatible to：SFF 8431,SFF 8472

Temperature Range: 0~ 70 °C

RoHS Compatible

Applications

High capacity I/O in Storage Area Networks, Network Attached Storage, and Storage Servers

Switched fabric I/O such as ultra high bandwidth switches and routers

Data center cabling infrastructure

High density connections between networking equipment

Description

The SFP+ cable assembly’s printed circuit paddle card has been designed to not only address the stringent mechanical interface requirements but also the higher-bandwidth signal integrity requirements for 10Gb/s per channel transmission. The cable assembly also includes robust diecast covers and an EMI girdle to assure proper EMI shielding effectiveness and termination. Cable assembly removal is enabled via a user friendly pull tab.

The passive cable assembly design has no signal amplification in the cable assembly. Electronic Dispersion Compensation (EDC) is typically used on host board designs when passive SFP+ copper assemblies are utilized. EDC allows for an extended length of passive cable assemblies.
