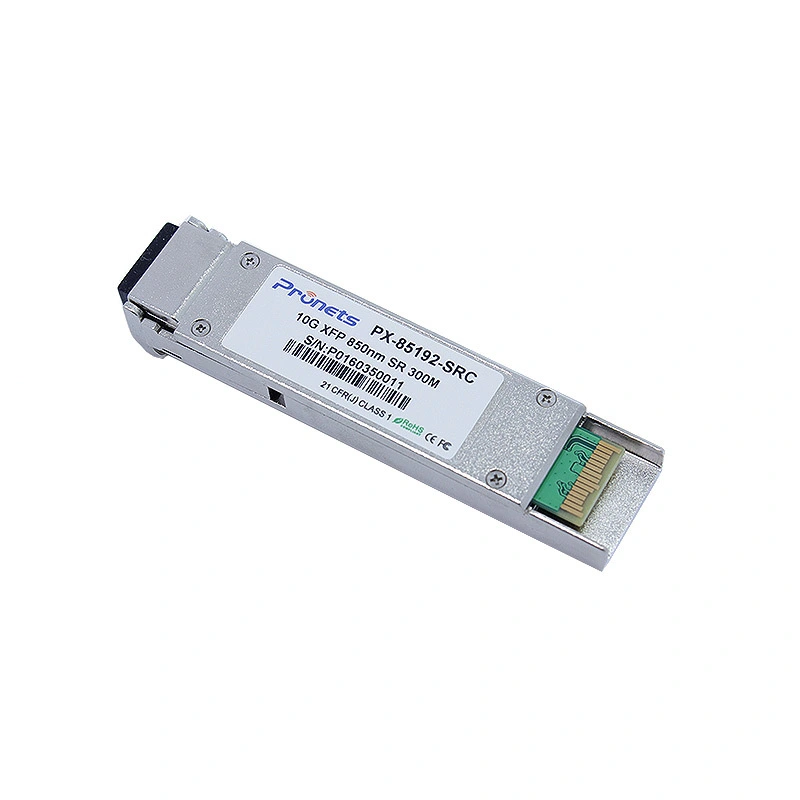

PX-85192-SRC 10GBASE-SR 850nm 300m XFP Optical Transceiver

Features

Supports 9.95Gbps to 10.5Gbps bit rates

Maximum link length of 300m (50um,MMF,2000MHz.Km)

850nm VCSEL laser and PIN receiver

Low power consumption <1.5W

+3.3V +1.8Vpower supply

XFP MSA package with duplex LC connector

XFI electrical interface

No reference clock required

Compatible with RoHS

Excelllent EMI performance

Built-in digital diagnostic functions

Temperature range: 0℃ to +70℃

High reliability

Applications

10GBASE-SR/SW 10G Ethernet

1200-Mx-SN-I 10G Fibre Channel

Other optical links

Description

PX-85192-SRC is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-LR) or 9.953Gbps 10GBASE-LW), and transmission distance up to 300m on 50μm MMF (2000MHz.km).

The transceiver module comprises a transmitter with 850nm a vertical cavity surface emitting (VCSEL) laser and a receiver with a PIN  photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
