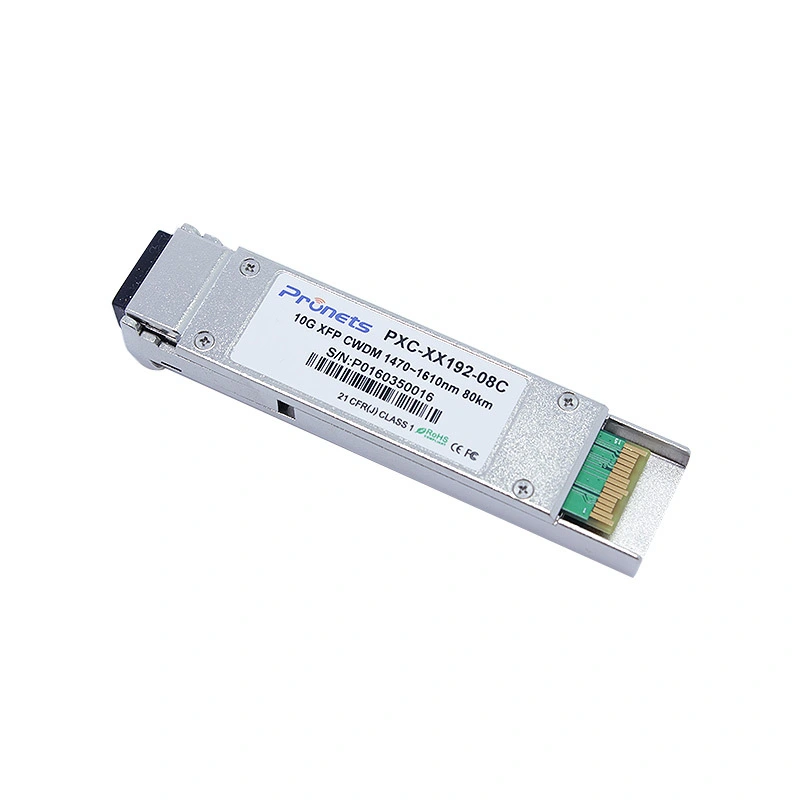

PXC-xx192- 08C 10GBASE-ZR/EW,10G Fiber-Channel 80Km CWDM XFP Optical Transceiver

Features

Wavelength selectable to ITU-T standards covering CWDM grid wavelengths

XFP MSA Compliant

Data rate from 9.95 Gbps to 11.3Gbps

No Reference Clock required

Cold EML transmitter and APD receiver

1470nm~1570nm link length up to 80km (1600ps/nm)

1590nm~1610nm link length up to 70km (1400ps/nm)

Low Power Dissipation 3.5W Maximum

-5ºC to 70ºC Operating Case Temperature

Diagnostic Performance Monitoring of module temperature, supply

Voltages, laser bias current, transmit optical power, receive optical power

RoHS compliant and lead free

Applications

SONET OC-192&SDH STM 64

10G Ethernet, 80km 10G Fiber Channel

CWDM Networks

Description

PRONETS CWDM XFP Transceiver exhibits excellent wavelength stability, cost effective module. It is designed for 10G CWDM SDH, 10GBASE-ZR/EW and 10G Fiber- Channel applications.

The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. PRONETS CWDM XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
