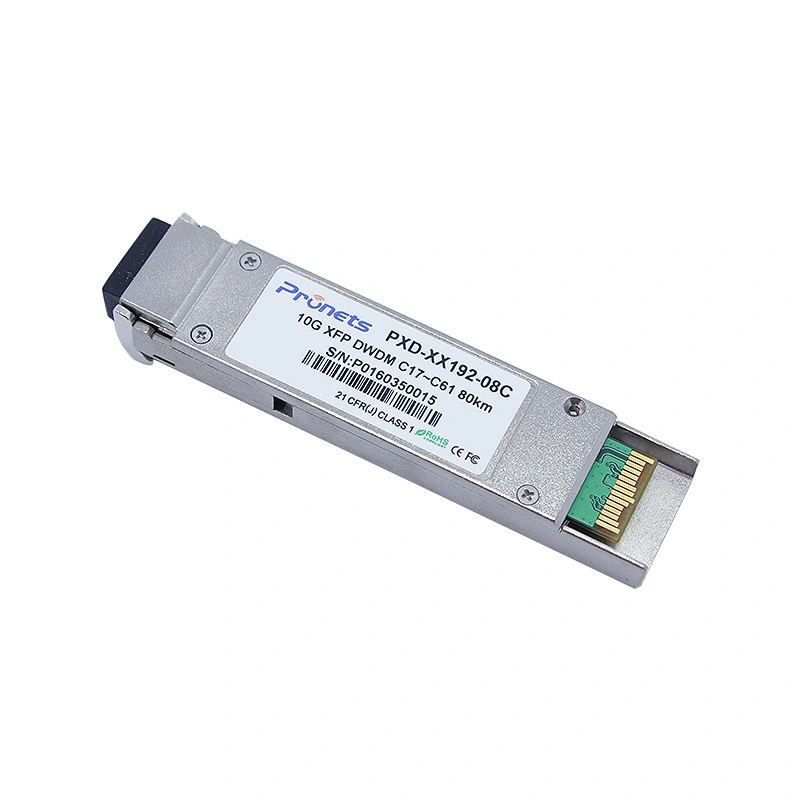

PXD-xx192- 08C 10GBASE-ZR,10G Fiber-Channel 80Km DWDM XFP Optical Transceiver

Features

Wavelength selectable to C-band ITU-T grid wavelengths

Suitable for use in 100GHz channel spacing DWDM systems

XFP MSA Compliant

Data rate from 9.95 Gbps to 11.1Gbps

No Reference Clock required

Cold Start up Wavelength Compliance

DWDM-rated EML transmitter and APD receiver

Link length up to 80km

Low Power Dissipation 3.5W Maximum

-5ºC to 70ºC Operating Case Temperature

Diagnostic Performance Monitoring of module temperature, supply

voltages, laser bias current, transmit optical power, receive optical power

RoHS compliant and lead free

Applications

SONET OC-192&SDH STM 64

10G Ethernet

80km 10G Fiber Channel

DWDM Networks

Description
PRONETS DWDM XFP Transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for 10G DWDM SDH, 10GBASE-ZR and 10G Fiber- Channel applications.
The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. PRONETS DWDM XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
