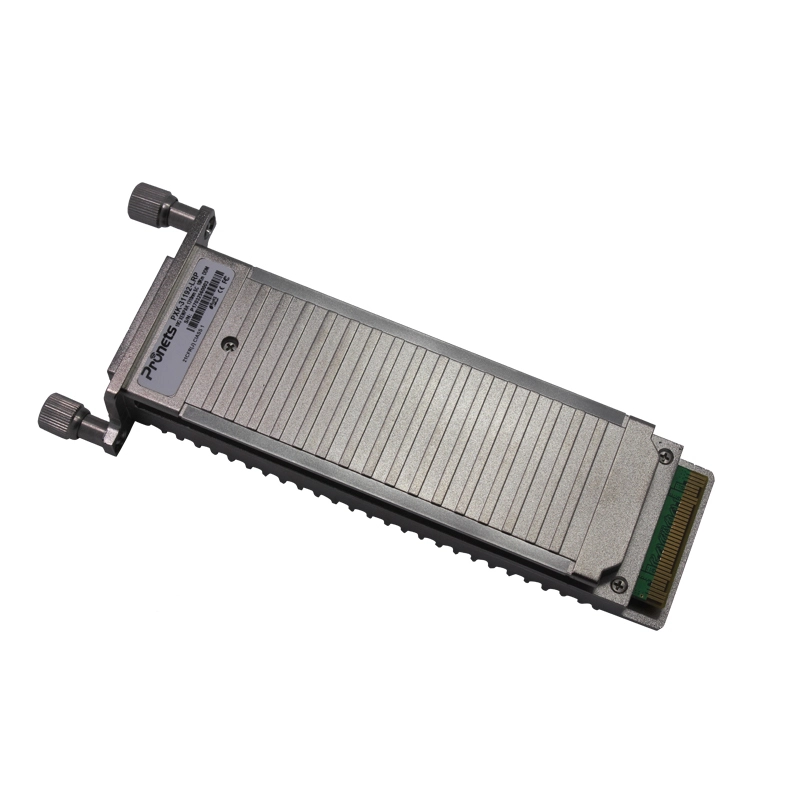

PXK-31192-LRC 10GBASE-LR 1310nm 10Km XENPAK Optical Transceiver
5.0
like
Specification Download:
/uploads/hongyuan.weyes.com.cn/addon/PXK-31192-LRC.pdf
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Features
Compatible with XENPAK MSA Rev.3.0
Support of IEEE802.3ae 10GBASE-LR
Transmission Distance up to 10km(SMF)
Uncooled directly modulated 1310nm DFB Laser
Temperature Range 0 to 70°C
Adaptable Power Supply (APS:+1.2V)
SC duplex Optical connector
Hot pluggable 70-pin connector with XAUI electrical interface
Management and control via MDIO 2-wire interface
Compatible with RoHS
Applications
10GBASE-LR 10G Ethernet
Product Description
The PXK-31192-LRC is a highly integrated、Serial optical transponder module for high-speed, 10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface.An integrated Coder / Decoder and multiplexer / demultiplexer (SERDES: Serializer / Deserializer). Designing for 10GBASE-LR Transmission with an uncooled directly modulated 1310nm DFB Laser. The transponder operates within a wide case temperature range of 0°C to +70°C and offers optimum heat dissipation and excellent electromagnetic shielding which enables high port densities for 10 GbE systems. A 70 pin electrical connector and a duplex SC connector optical interface assure that connectivity is compliant to the XENPAK MSA Rev.3.0.
Compatible with XENPAK MSA Rev.3.0
Support of IEEE802.3ae 10GBASE-LR
Transmission Distance up to 10km(SMF)
Uncooled directly modulated 1310nm DFB Laser
Temperature Range 0 to 70°C
Adaptable Power Supply (APS:+1.2V)
SC duplex Optical connector
Hot pluggable 70-pin connector with XAUI electrical interface
Management and control via MDIO 2-wire interface
Compatible with RoHS
Applications
10GBASE-LR 10G Ethernet
Product Description
The PXK-31192-LRC is a highly integrated、Serial optical transponder module for high-speed, 10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface.An integrated Coder / Decoder and multiplexer / demultiplexer (SERDES: Serializer / Deserializer). Designing for 10GBASE-LR Transmission with an uncooled directly modulated 1310nm DFB Laser. The transponder operates within a wide case temperature range of 0°C to +70°C and offers optimum heat dissipation and excellent electromagnetic shielding which enables high port densities for 10 GbE systems. A 70 pin electrical connector and a duplex SC connector optical interface assure that connectivity is compliant to the XENPAK MSA Rev.3.0.
