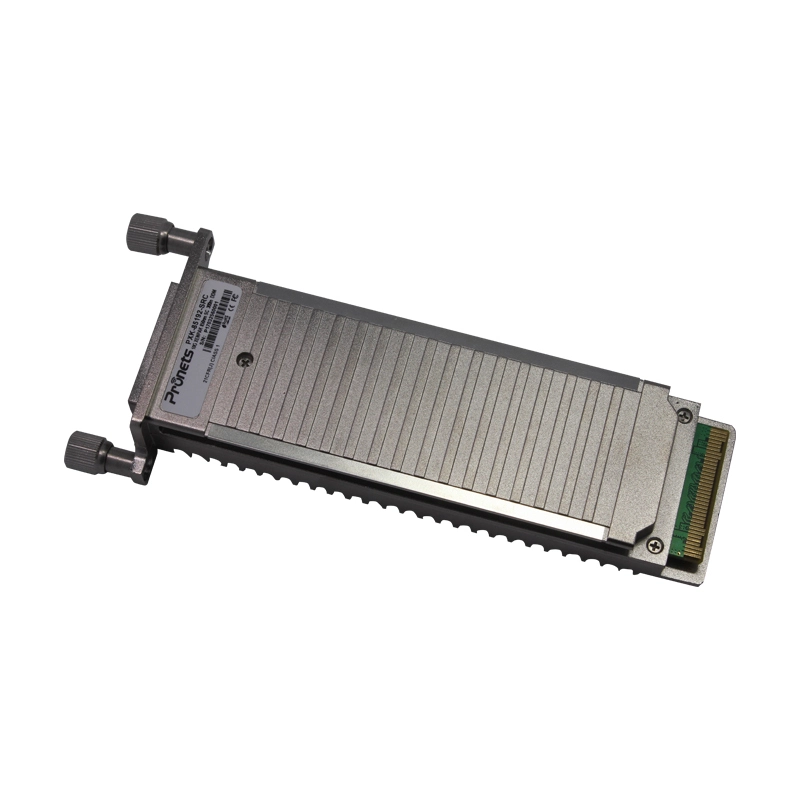

PXK-85192-SRC 10GBASE-SR 850nm 300m XENPAK Optical Transceiver
5.0
like
Specification Download:
/uploads/hongyuan.weyes.com.cn/addon/PXK-85192-SRC.pdf
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Features
Compatible with XENPAK MSA Rev.3.0
Support of IEEE802.3ae up to 300m (OM3 MMF)
Power Consumption 1.8W (typ.)
Temperature Range 0 to 70°C
Vertical Cavity Surface Emitting Laser at 850nm (VCSEL)
Adaptable Power Supply (APS:+1.2V)
SC duplex connector
Hot pluggable 70-pin connector with XAUI electrical interface
Management and control via MDIO 2-wire interface
Compatible with RoHS
Applications
10GBASE SR 10G Ethernet
Product Description
The PXK-85192-SRC is a highly integrated、Serial optical transponder module for high-speed, 10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface.An integrated Coder / Decoder and multiplexer / demultiplexer (SERDES: Serializer / Deserializer). Designing for 10GBASE-LR Transmission with a Vertical Cavity Surface Emitting Laser at 850nm. The transponder operates within a wide case temperature range of 0°C to +70°C and offers optimum heat dissipation and excellent electromagnetic shielding which enables high port densities for 10 GbE systems. A 70 pin electrical connector and a duplex SC connector optical interface assure that connectivity is compliant to the XENPAK MSA Rev.3.0.
Compatible with XENPAK MSA Rev.3.0
Support of IEEE802.3ae up to 300m (OM3 MMF)
Power Consumption 1.8W (typ.)
Temperature Range 0 to 70°C
Vertical Cavity Surface Emitting Laser at 850nm (VCSEL)
Adaptable Power Supply (APS:+1.2V)
SC duplex connector
Hot pluggable 70-pin connector with XAUI electrical interface
Management and control via MDIO 2-wire interface
Compatible with RoHS
Applications
10GBASE SR 10G Ethernet
Product Description
The PXK-85192-SRC is a highly integrated、Serial optical transponder module for high-speed, 10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface.An integrated Coder / Decoder and multiplexer / demultiplexer (SERDES: Serializer / Deserializer). Designing for 10GBASE-LR Transmission with a Vertical Cavity Surface Emitting Laser at 850nm. The transponder operates within a wide case temperature range of 0°C to +70°C and offers optimum heat dissipation and excellent electromagnetic shielding which enables high port densities for 10 GbE systems. A 70 pin electrical connector and a duplex SC connector optical interface assure that connectivity is compliant to the XENPAK MSA Rev.3.0.
